INTAKE AIR TEMPERATURE SENSOR

Service repair no - 18.30.09

Remove

  1. Disconnect battery earth lead.
Intake air temperature sensor – Disconnect battery earth lead.
  1. Remove 3 bolts securing sound deadening pad to engine.
  2. Remove sound deadening pad.
Intake air temperature sensor – Remove sound deadening pad.

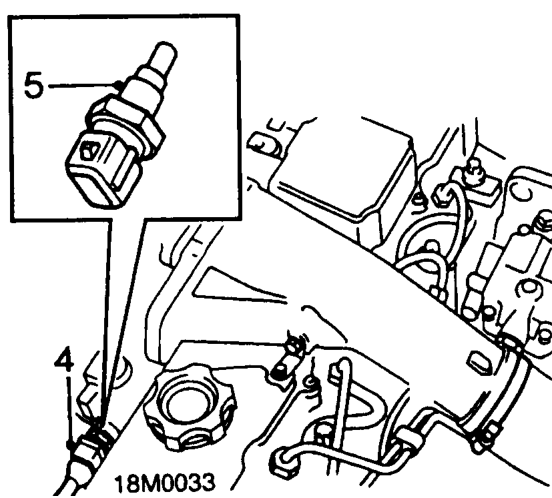

  1. Disconnect multiplug from intake air temperature sensor.
  2. Remove intake air temperature sensor.

Refit

  1. Clean threads of intake air temperature sensor and apply Loctite 577.
  2. Fit sensor to inlet manifold and tighten to 12 Nm.
  3. Connect multiplug to intake air temperature sensor.
  4. Position sound deadening pad to engine and secure with bolts.
  5. Connect battery earth lead.
