Automatic gearboxRemove

Service Repair No. 44.15.01

Remove

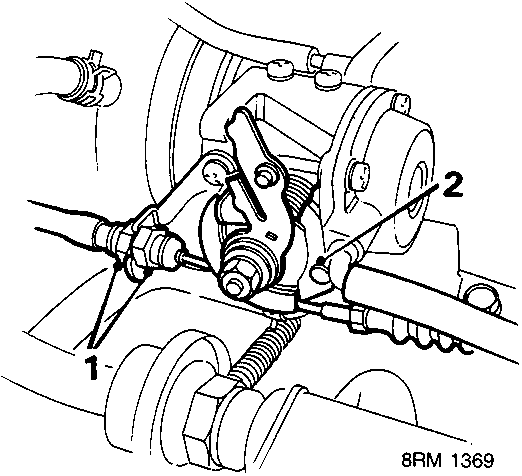

Diagram showing throttle body abutment bracket with callout numbers 1 and 2, reference 8RM 1369
  1. Slacken locknuts securing cable to throttle body abutment bracket.
  2. Release cable from throttle lever.
  3. Release cable from clip on bottom hose.

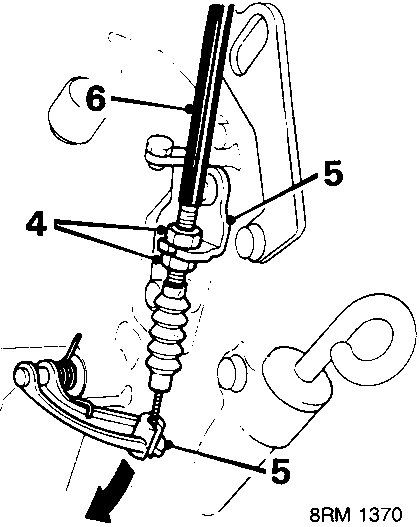

Diagram showing gearbox abutment bracket and lever with callout numbers 4, 5, and 6, reference 8RM 1370
  1. Slacken locknuts securing cable to gearbox abutment bracket.
  2. Release cable from abutment bracket and gearbox lever.
  3. Remove cable.

Refit

  1. Fit cable to gearbox abutment bracket and lever.
  2. Temporarily tighten locknuts securing cable to gearbox abutment bracket.
  3. Secure cable in clip on bottom hose.
  4. Connect cable to throttle lever.
  5. Fit cable into abutment bracket and tighten locknuts.
  6. Adjust throttle control cable, see Adjustments.

SELECTOR CABLE

Service Repair No. 44.15.08

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove front console, see BODY – Repairs.
  2. Remove front exhaust pipe, see MANIFOLD & EXHAUST – Repairs.

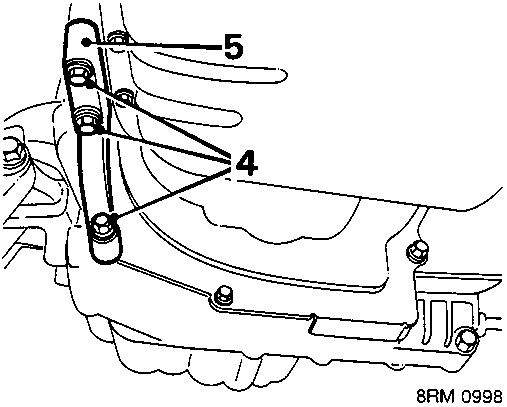

Diagram showing anti-beaming bracket secured by bolts with callout numbers 4 and 5, reference 8RM 0998
  1. Remove 3 bolts securing anti beaming bracket to engine and gearbox.
  2. Remove anti – beaming bracket.
