Check and top-up power steering fluid

Carry out fluid level check when engine is stopped and system is cold.

Note: It is essential that power steering system should not have been operated since engine was stopped.

1·4

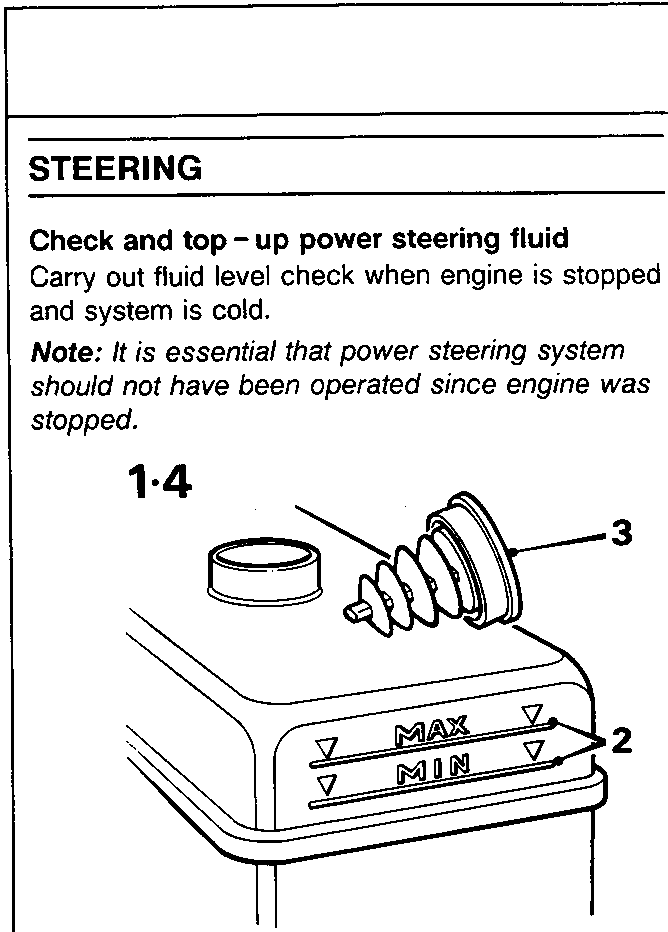

Diagram of a rectangular power steering reservoir showing the filler cap (3) and MAX/MIN level indicators (2).

1·6/2·0

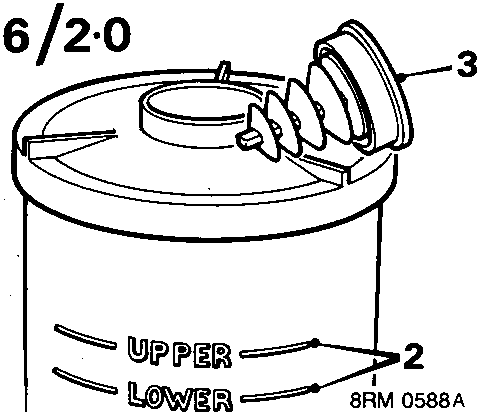

Diagram of a cylindrical power steering reservoir showing the filler cap (3), UPPER and LOWER level indicators (2), and reference code 8RM 0588A.
  1. Clean reservoir around filler cap and level indicators.
  2. Visually check fluid level is between level indicators.
  3. If required, remove filler cap and top-up with DEXRON II D specification fluid. Do not overfill.

CAUTION: Ensure no dirt is allowed to enter reservoir when cap is removed.

  1. Refit filler cap.
