Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual16 · Manual gearbox 1.6
16 · Transmission

Manual gearbox (page 2 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Manual gearbox 1.6Manual gearbox · page 2 of 3

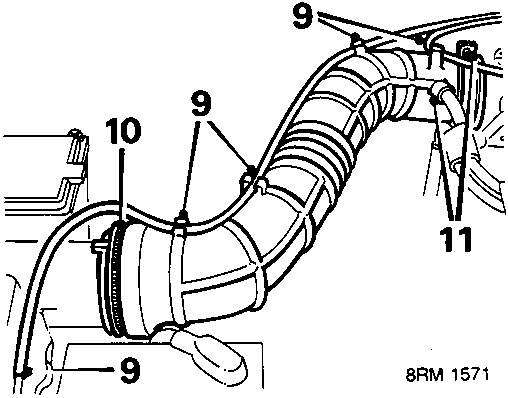

Diagram showing vacuum pipes (9), air cleaner connection (10), and intake trunking clip (11)
  1. Disconnect vacuum pipe from air cleaner. Disconnect 2 vacuum pipes from intake trunking clips.
  2. Disconnect intake trunking from air cleaner.
  3. Slacken clip, remove intake trunking from throttle housing. Release clip and disconnect breather pipe from trunking.

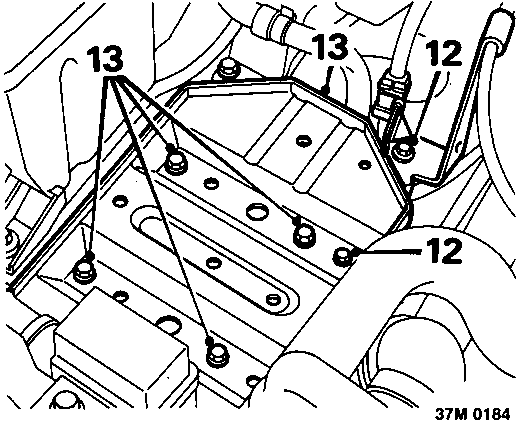

Diagram showing bolts (13) securing battery tray and pump feed hose bracket (12)
  1. ABS6: Remove 2 bolts securing pump feed hose and throttle cable bracket to battery tray.
  2. Remove 4 bolts, battery tray to body and remove battery tray.
  3. Remove starter motor, see ELECTRICAL – Repairs.

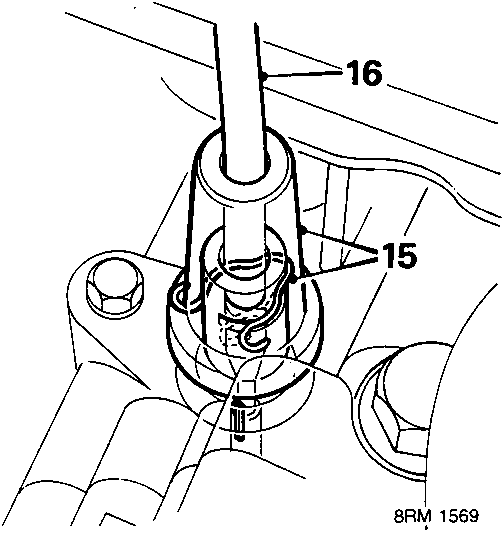

Diagram showing speedometer cable cover (16) and retaining clip (15)
  1. Release speedometer cable cover and remove speedometer cable retaining clip from slot in gearbox housing.
  2. Disconnect speedometer cable from gearbox.

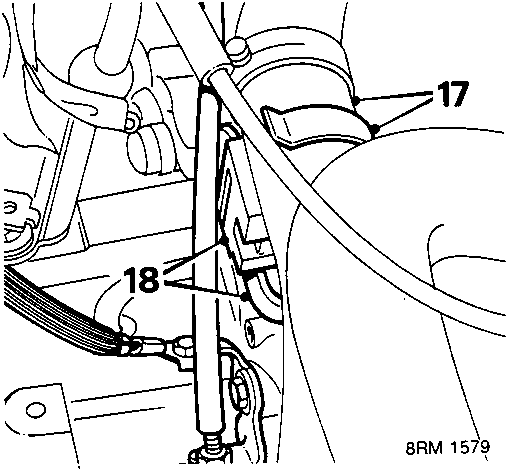

Diagram showing radiator bottom hose (17) and clip (18) at abutment bracket
  1. Release radiator bottom hose from clip.
  2. Release clip from abutment bracket.

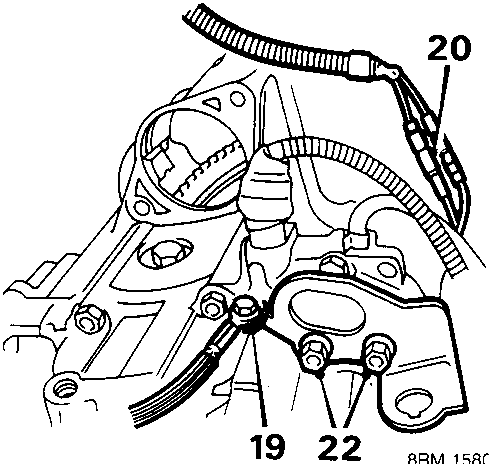

Diagram showing earth lead bolt (19), reverse lamp switch snap connectors (20), and gearbox mounting bolt (22)
  1. Remove bolt, earth lead to gearbox and move lead aside.
  2. Disconnect 2 reverse lamp switch snap connectors.
