General

General

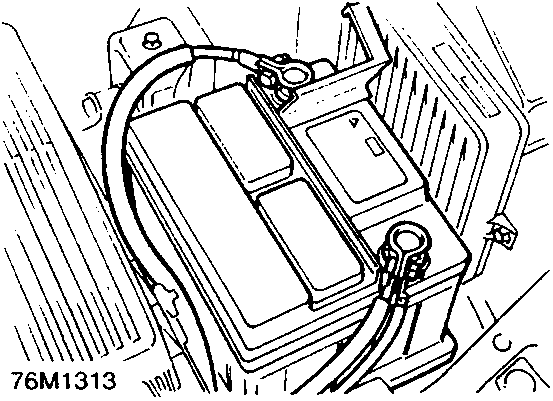

76M1313

• Always disconnect both the battery leads, earth lead first before beginning work.

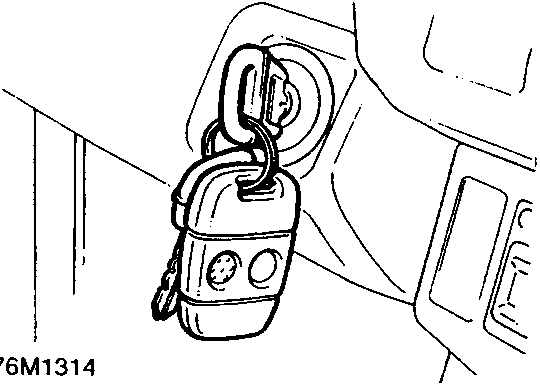

76M1314

• Always remove the key from the starter switch and wait 10 minutes to allow the SRS back – up circuit to fully discharge before beginning work.

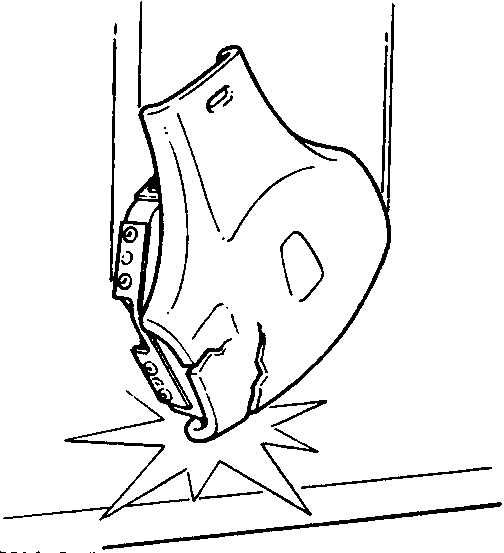

76M1315

• Carefully inspect any SRS part before you install it. Do not install any part that shows signs of being dropped or improperly handled, such as dents, cracks or deformation:

• Airbag assembly.
• Slip ring.
• Steering wheel.

• The airbag control unit is a shock sensitive device and must be handled with extreme care. Never install a part that shows signs of being dropped or improperly handled.
• Do not install used SRS parts from another car. When repairing an SRS, use only new parts.
• Use only a digital circuit tester to check the system. Using an analogue circuit tester may cause an accidental deployment and possible injury.
• After completed work, check that the connectors are installed correctly:
  – The SRS indicator light should go off 3 sec after the ignition switch has been turned on.
