Supplementary restraint system (SRS)Warning labels

WARNING LABELS

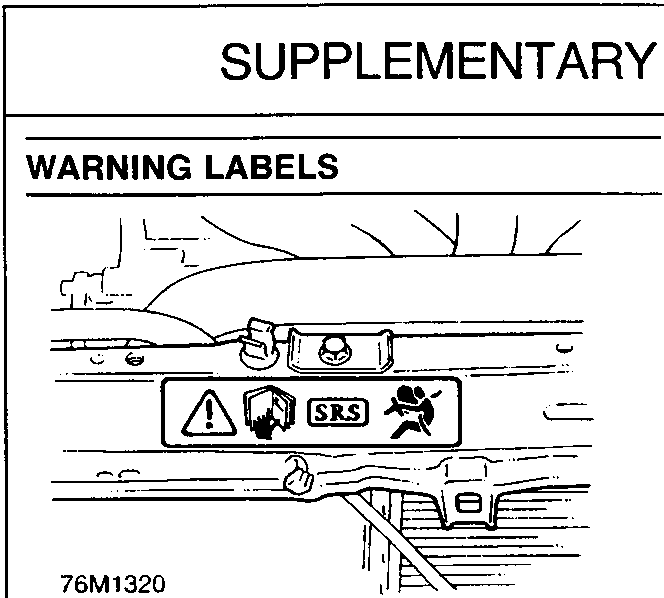

Warning label located on the bonnet locking platform, showing SRS symbol and pictograms.

76M1320

  1. Bonnet locking platform

Refer to the Owner’s Handbook for information on the airbag system.

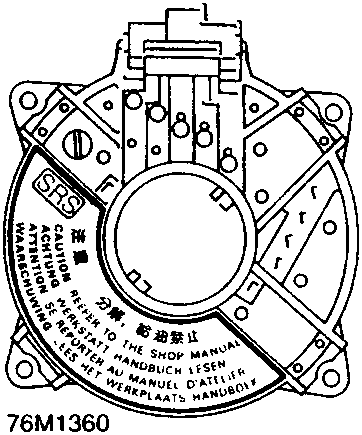

Circular slip ring component with warning labels printed around its perimeter in multiple languages including English, French, German, Japanese, and Dutch.

76M1360

  1. Slip ring

SRS – Caution Refer to the workshop manual

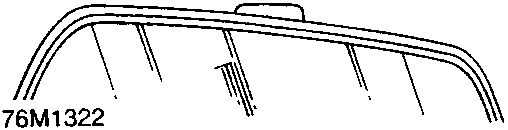

Warning label affixed to the upper section of the windscreen, displaying SRS text and safety pictograms.

76M1322

  1. Windscreen

Refer to the Owner’s Handbook for information on the airbag system.

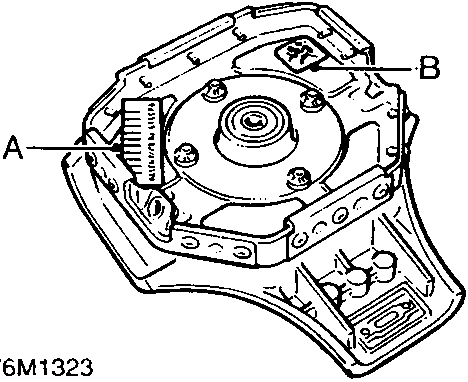

Rear view of an airbag module showing the electrical connector labeled A and the main housing labeled B.

76M1323

  1. Airbag module

A – ROVER Part Number – The code number must be quoted when ordering a replacement module.

– ROVER Bar code – The code number must be recorded if the airbag module is to be replaced.

B – Supplementary restraint system (airbag).

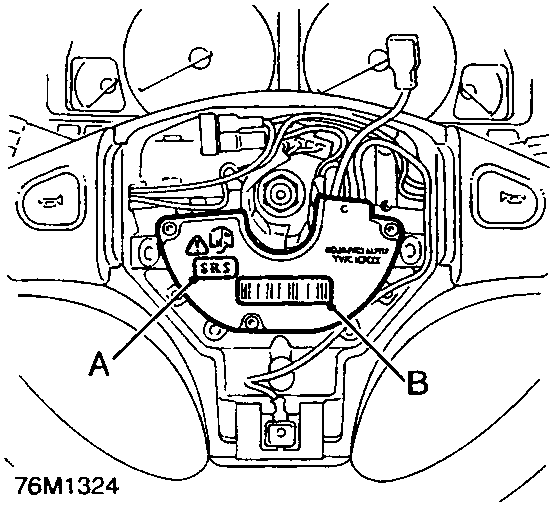

Steering wheel assembly with the airbag cover removed, revealing the internal control unit area labeled A and the bar code label labeled B.

76M1324

  1. Airbag control unit

A – Refer to the workshop manual for information on the airbag system.

B – ROVER Bar code – The code number must be recorded if the airbag control unit is to be replaced.
