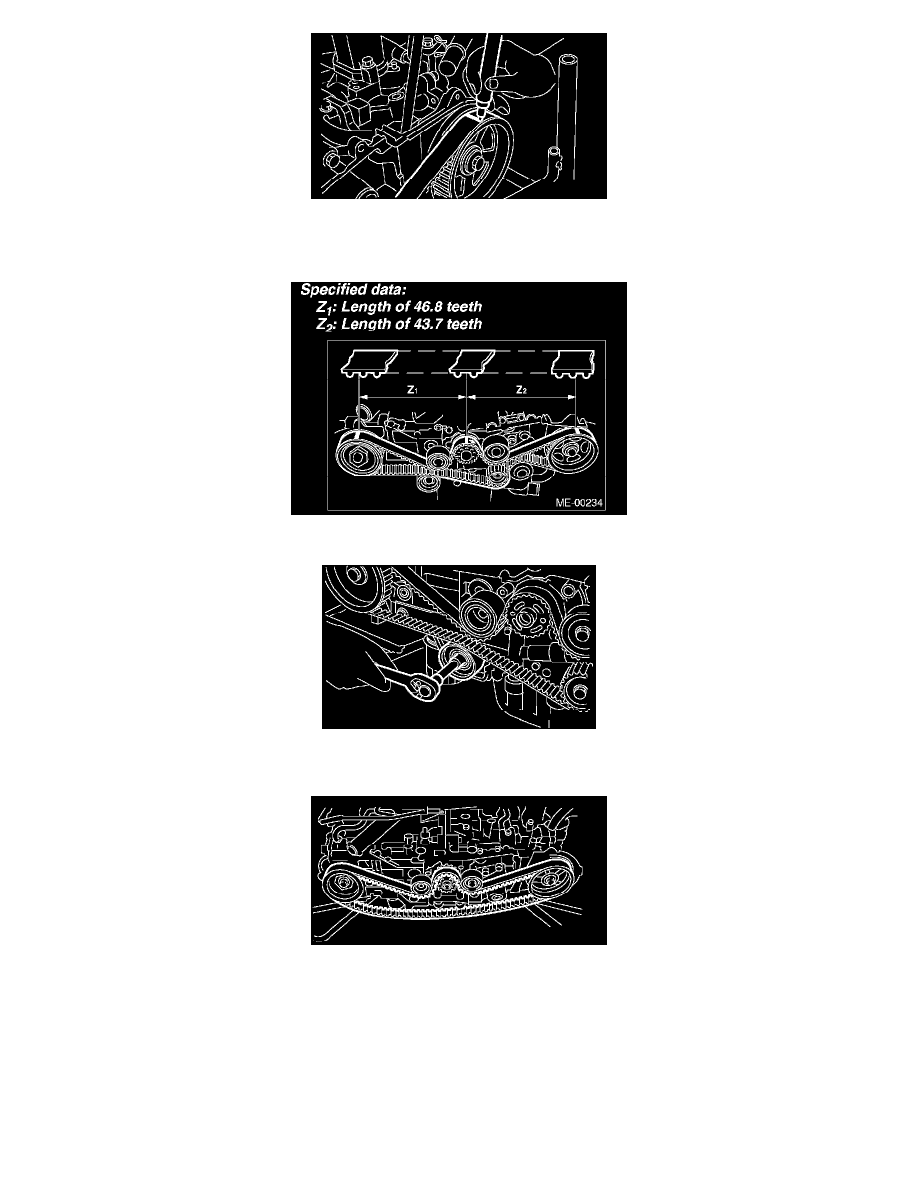

Specified data:
Z1: Length of 46.8 teeth
Z2: Length of 43.7 teeth

6. Remove the belt idler (No. 2).

7. Remove the belt idler No. 2.
8. Remove the timing belt.

Belt Idler And Automatic Belt Tension Adjuster Assembly

1. Remove the belt idler (No. 1).
