Leon Mk1

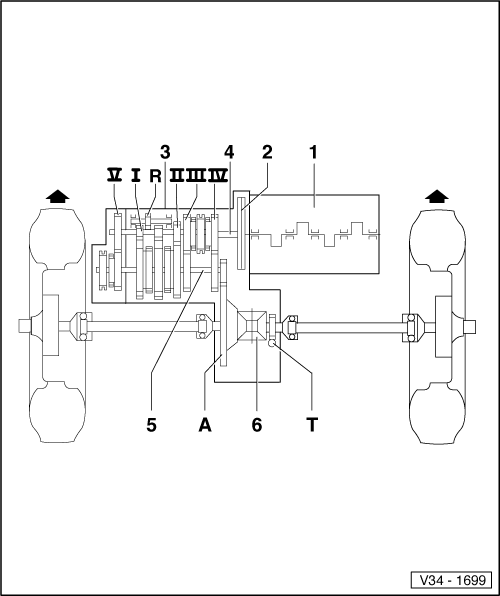

Power transmission diagram |
Name |
The arrows indicate the vehicle's direction of movement. |
1 - | Engine |
2 - | Clutch |
3 - | Manual gearbox |
4 - | Primary shaft |
5 - | Secondary shaft |
6 - | Differential |
Reduction drive |
The arrows indicate the vehicle's direction of movement. |
I - | 1st gear |
II - | 2nd gear |
III - | 3rd gear |
IV - | 4th gear |
V - | 5th gear |
R - | Reverse gear |
A - | Drive train |
T - | Speedometer mechanism |
