Securing gearbox to assembly stand

Make
SEAT
Model
Leon Mk1
Section
6-speed manual gearbox 01X › Gearbox mechanics,operation, construction,diff. › Securing gearbox to assembly stand
Power transmissionSecuring gearbox to assembly stand
Securing gearbox to assembly stand
Check the tool and equipment equivalence table according to the applicability between Seat / VW / Audi / Skoda → Chapter

Securing gearbox to assembly stand – SEAT Leon Mk1

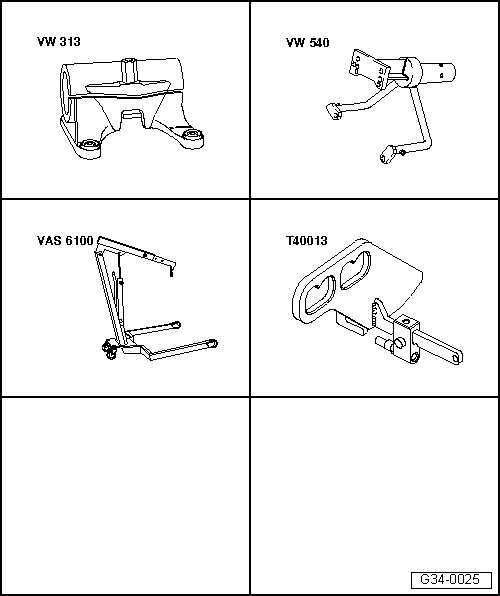

Special tools and workshop equipment required
t  Clamping frame -VW 313-
t  Engine and gearbox support -VW 540-
t  Workshop crane -VAS 6100-
t  Coupling tool -T40013-


Operation process
–  Insert lifting aid -T40013- in lifting eye on gearbox and secure.
–  Engage hook of workshop hoist -VAS 6100- in 4th notch -arrow- on lifting aid -T40013 -.
–  Lift gearbox with workshop hoist -VAS 6100- and lifting aid -T40013 -.
  A34-0705
–  Secure engine and gearbox support -VW 540- to gearbox and fit into support clamp -VW 313-.
  A34-0642

The same page in: Leon Mk2.
