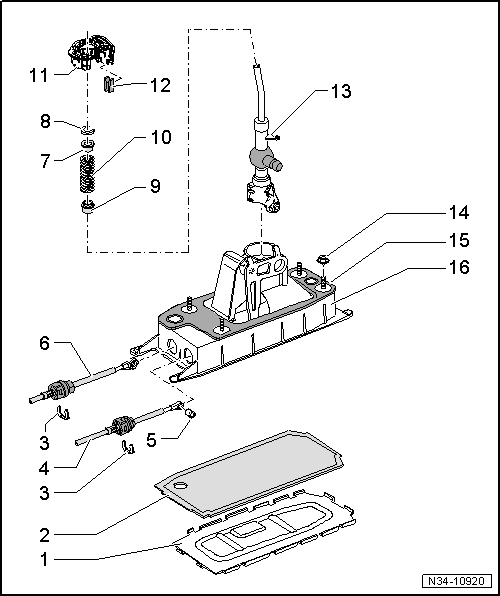

II - Gear lever and selector housing: Repairing - Assembly overview
Gear selection mechanism – SEAT Leon Mk1  Note
t  Lubricate bearing positions and sliding surfaces.
t  Allocate grease using → Electronic parts catalogue (ETKA).
Gear selection mechanism – SEAT Leon Mk1
1 - Lower plate
q   Bend open tabs to remove
q   Always renew
2 - Seal
q   Always renew
3 - Retainer washer
q   Take care not to damage selector cables when removing.
q   Always renew
4 - Selection control cable
q   Lever off gate selector lever
q   Press onto gate selector lever inside selector mechanism
q   Installation position → Chapter
5 - Drift sleeve
6 - Gear selector cable
q   Lever off gear lever guide
q   Press onto gear lever guide inside selector mechanism
q   Installation position → Chapter
7 - Drift sleeve
8 - Retainer washer
q   Removing and installing → Fig.>>>>>>>>
9 - Drift sleeve
10 - Compression spring
11 - Bearing cap
q   Will be damaged during removal
q   Always renew
12 - Damper
13 - Gear lever
q   With gear lever guide
q   Removing and installing ⇒ Dismantling and assembling selector mechanism → Chapter
14 - 8 Nm hexagonal nut
q   4x
15 - Seal
q   Between selector housing and underbody
q   Self-adhesive
q   Bond to selector housing
16 - Lever protection box
q   With compression spring and gate selector lever
q   Compression spring and gate selector lever cannot be removed


Removing and installing securing clip
–  To remove or install lock washer -arrow A-, press spacer bush -arrow B- to stop -in direction of arrow C- using screwdriver.
Gear selection mechanism – SEAT Leon Mk1  Note
t  Keep spacer bush straight while pushing down.
t  Slot in gear lever for securing clip must be visible.
t  Carefully release tension from spring.
  N34-1363
