Leon Mk1

  • Direct shift gearbox 02E, four-wheel drive
  • Technical data
  • Gearbox identification

Gearbox identification
Gearbox identification
The „6-speed dual clutch gearbox (DSG) 02E for four-wheel drive“ shall be mounted in the Altea XL Freetrack 2009►. Allocation → Chapter.


The gearbox code is located in the top area of the gearbox, near the gearbox oil cooler.

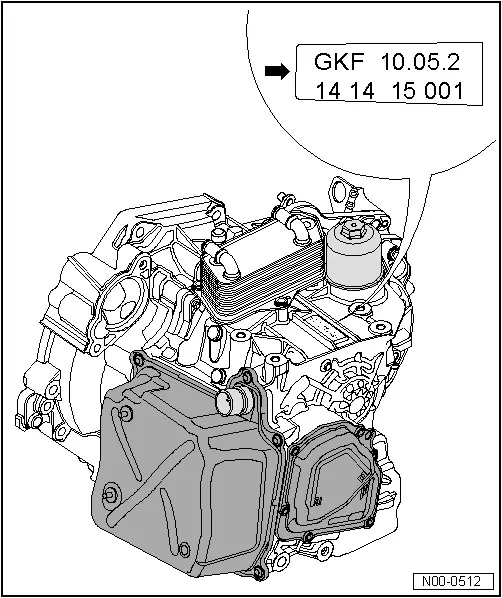

Example of a gearbox:
t  GKF = gearbox codes
t  10.05.2 = Date of manufacture, 10 May 2002
The gearbox code is also listed on the vehicle data sticker.
