Leon Mk1
Vehicle electrics
Electrical system
Windscreen wipe/wash system
Lamp Washer
Removing
Removing
Note!
Before releasing the headlamp washer tube connection, prepare a container ready to collect any fluid that may spill out.
–

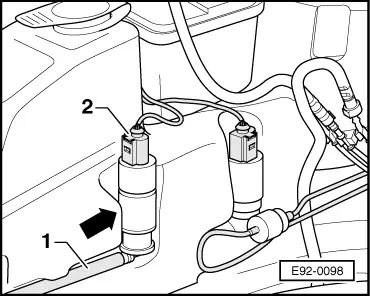

Remove the tubing
-1-
for the headlamp washer from the pump.
–
Withdraw the headlight cleaning pump from its position in the tank
-arrow-
, by pulling gently upwards.
–
Once the pump has been removed, the connector is removed
-2-
.
