Clutch actuation mechanism - assembly survey

Make

SEAT

Model

Leon Mk2

Section

Clutch, control › Clutch mechanism: repairs › Clutch actuation mechanism - assembly survey

Power transmissionClutch actuation mechanism - assembly survey

Clutch actuation mechanism - assembly survey

  Note

t	For vehicles fitted with a coded radio, first check the anti-theft code

t	With the ignition switched off, disconnect battery earth strap.

t	When the battery is reconnected, coding must be carried out according to the fitted equipment; enter the radio code, adjust the clock.

t	Lubricate the support points and contact surfaces with polycarbamide grease → Spare Parts Catalogue

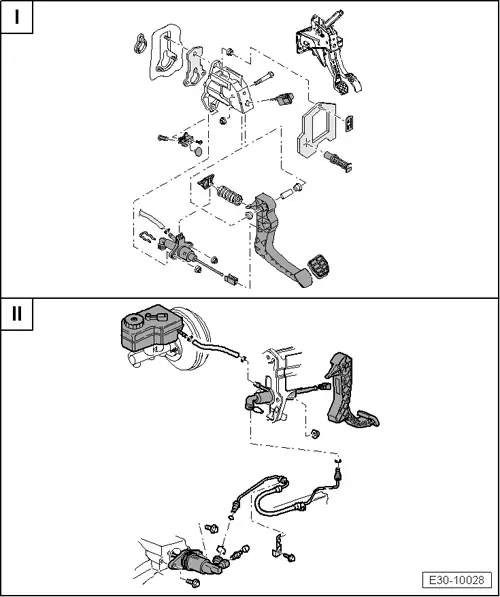

I -	Pedal mechanism, clutch pump: assembly overview → Chapter

II -	Clutch hydraulic system: assembly overview → Chapter
