Leon Mk2

replace
replace
–  Raise the vehicle.

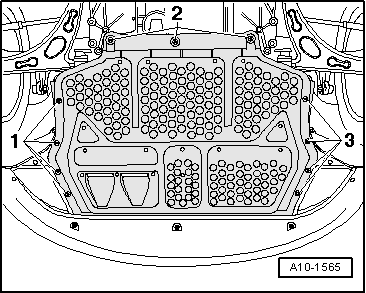

–  Vehicles with diesel engine: Unscrew bolts - 1 … 3- and remove center noise insulation.
  A10-1565

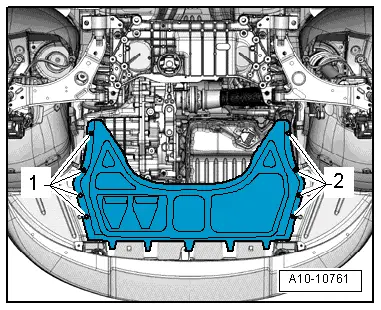

–  Vehicles with diesel engine: Unscrew bolts -1- … -2- and remove center noise insulation.
–  Place below the collecting tray -T20173-.
  A10-10761
–  Unscrew drain plug -arrow- and empty gearbox oil.
  E34-10103
–  Unscrew oil level test and filler plug -arrow-.
–  Tighten the gearbox oil discharge cap to a torque of 25 Nm.
  Note
Oil level is correct when the oil reaches the bottom edge of filling hole.
Oil specification for gears → Chapter.
–  Fill with new gear oil up to the correct level.
–  Unscrew control lid, start engine and let the gears work with engaged gear for about 2 minutes.
–  Stop the engine, remove oil cap and check level again, top up if necessary.
–  Tighten the gearbox oil level control and filler cap and apply a torque of 25 Nm.
–  Install the middle soundproofing.
