Check and refill

Make

SEAT

Model

Leon Mk2

Section

Gearbox mechanics,operation, construction,diff. › Gearbox oil level › Check and refill

Power transmissionCheck and refill

Check and refill –  Raise vehicle.

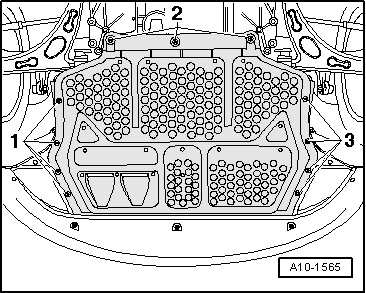

–  Vehicles with diesel engine: Unscrew bolts - 1 … 3- and remove center noise insulation.

–  Vehicles with diesel engine: Unscrew bolts -1- … -2- and remove center noise insulation.

–  Loosen oil level test bolt -arrow-.   Note Oil level is correct when the oil reaches the bottom edge of filling hole. Oil specification for gears → Chapter. –  If the oil level is not correct, complete oil level. –  Unscrew control lid, start engine and let the gears work with engaged gear for about 2 minutes. –  Stop the engine, remove oil cap and check level again, top up if necessary. –  Tighten the gearbox oil level control cap to a torque of 25 Nm. –  Install the middle soundproofing.

01 Transmission
