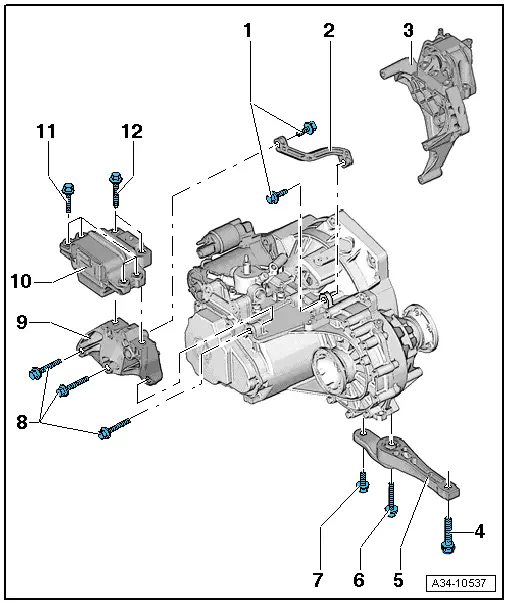

Assembly mountings: Assembly overview – SEAT Leon Mk2
1 - Bolt.
q   20 Nm + 90°
q   Gearbox support to gearbox and gearbox bracket
q   Tightening sequence → Fig.
q   Always replace.
2 - Final drive support
q   To gearbox bracket and gearbox
3 - Engine mounting to engine support
q   → Rep. gr.10
4 - Bolt.
q   Pendulum support to sub-frame
q   → Rep. gr.40
5 - Pendulum support
q   → Rep. gr.40
6 - Bolt.
q   Pendulum support to gearbox
q   → Rep. gr.40
7 - Bolt.
q   Pendulum support to gearbox
q   → Rep. gr.40
8 - Bolt.
q   40 Nm + 90°
q   Gearbox bracket to gearbox
q   Always replace.
9 - Gearbox console
10 - Gearbox console
q   Verifying the adjustment → Rep. gr.10
q   Adjust convergence → Rep. gr.10
11 - Bolt.
q   Gearbox mounting to body
q   → Rep. gr.10
12 - Bolt.
q   60 Nm + 90°
q   Gearbox mounting to gearbox bracket
q   Always replace.


Fastening gearbox mounting to gearbox bracket
–  Renew bolts -arrows-
–  Tighten all bolts hand-tight.
–  Tighten bolts to specified torque.
  N34-1846

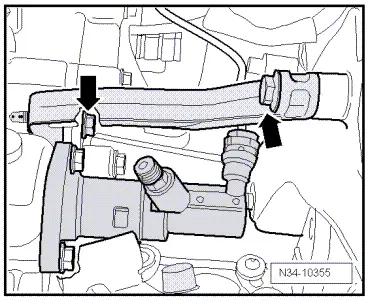

Gearbox support to gearbox bracket and gearbox
–  Renew bolts
–  First, screw in the two bolts hand-tight -arrows-.
–  Tighten bolts to specified torque.
  N34-10355
