SEAT Leon Mk201 · Power transmission
01 · Transmission

Transporting gearbox

Make
SEAT
Model
Leon Mk2
Section
0AJ 6-speed manual gearbox › Gearbox mechanics,operation, construction,diff. › Transporting gearbox
Power transmissionTransporting gearbox
Transporting gearbox
Consult the equivalence table for tools and equipment according to applicability among Seat / VW / Audi / Skoda → Chapter.

Transporting gearbox – SEAT Leon Mk2
Special tools and workshop equipment required
t  base -T20172/1 -, see equivalent → Anchor
t  Tower -T20172/2 -, see equivalent → Anchor
t  Gearbox support -T20172/4A -, see equivalent → Anchor
t  counterhold -T20186 -, see equivalent → Anchor

Operation process
–  Fit the base -T20172/1- with the tower -T20172/2- and the gearbox support -T20172/4A -.

–  Fit counterhold -T20186- on gearbox in order to transport it.
  E10-10013

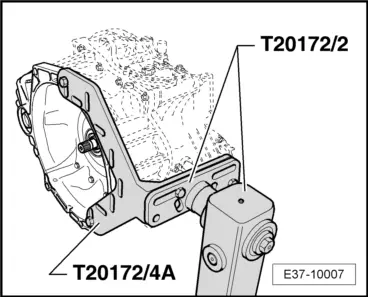

–  Place gearbox on the gearbox support -T20172/4A -.
  E37-10007

The same page in: Leon Mk1.
