Transporting gearbox
Transporting gearbox
Consult the equivalence table for tools and equipment according to applicability among Seat / VW / Audi / Skoda → Chapter.

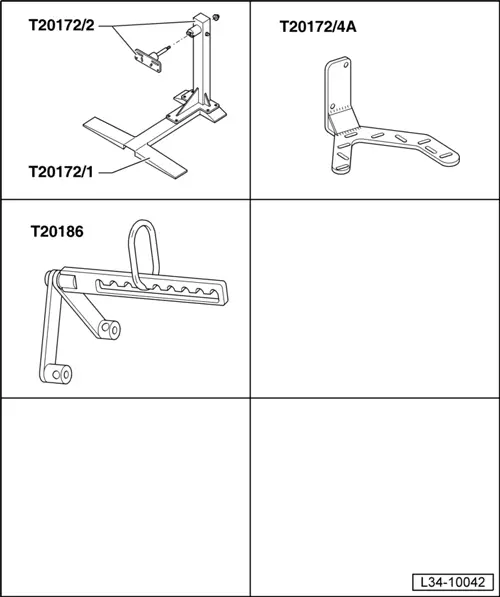

Special tools and workshop equipment required
t  base -T20172/1 -, see equivalent → Anchor
t  Tower -T20172/2 -, see equivalent → Anchor
t  Gearbox support -T20172/4A -, see equivalent → Anchor
t  counterhold -T20186 -, see equivalent → Anchor

Operation process
–  Fit the base -T20172/1- with the tower -T20172/2- and the gearbox support -T20172/4A -.

–  Fit counterhold -T20186- on gearbox in order to transport it.
  E10-10013
–  Place gearbox on the gearbox support -T20172/4A -.
  E37-10007
