SEAT Leon Mk101 · Power transmission
01 · Transmission

Gear change forks:

Make
SEAT
Model
Leon Mk1
Section
0AJ 6-speed manual gearbox › Gearbox mechanics,operation, construction,diff. › Gear change forks:
Power transmissionGear change forks:
Repairing selector forks
Consult the equivalence table for tools and equipment according to applicability among Seat / VW / Audi / Skoda → Chapter.

Gear change forks: – SEAT Leon Mk1

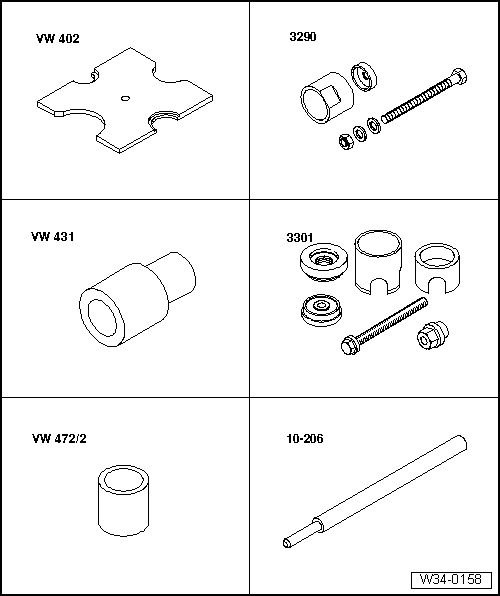

Special tools and workshop equipment required
t  Pressure plate -VW 402-, see equivalent → Anchor
t  pressure tool -3290/1-
t  Assembly tool -3301-, see equivalent → Anchor
t  pressure tool -VW 431-
t  Spacer bush -VW 472/2-
t  Die -10-206-


t  Release lever -80-200-, see equivalent → Anchor
  W00-0353
t  Drift -10-508-
  W00-0361
t  Tensioning tool -2070-
  W00-0764
Identification of selector segments and selector fork for 5th and 6th gear with selector segments
Gap -a-
1 - 1st/2nd gear selection group = 10.2 mm
2 - 3rd/4th gear selection group = 78.6 mm
3 - Prongs of 5th/6th gear with gear selection = 79.5 mm.
  N34-10201
Selector fork for 1st and 2nd gears with selector segments
Dimension -a- = 75 mm
  V34-2031
Removing lock washer
–  Clamp selector fork in vice with protective jaw covers -B-.
–  Separate the washer -A- by levering in -direction of arrow-.
  A34-0317
Installing lock washer
–  Press lock washer into groove of selector segment using socket and spinner handle.
Gear change forks: – SEAT Leon Mk1  Note
The gear selection group should still be free to rotate slightly after fitting the fastening ring
A  - Spinner handle with 10 mm socket
B  - Protective jaw covers
  V34-2024
Removing angular contact ball bearing
Gear change forks: – SEAT Leon Mk1  Note
Do not bend selector forks when removing and installing the ball bearing.
  V34-2025
Pressing inner race -A- of angular contact ball bearing into outer race
Inner race must engage in outer race.
  N34-1704
Pulling angular contact ball bearing into selector fork (insert onto stop)
Depression in thrust piece -3290/1- faces ball bearing.
  N34-1703
