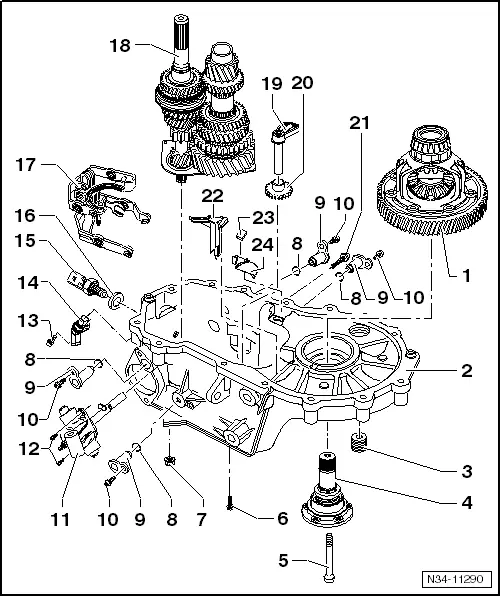

| Input shaft, output shaft (pinion shaft), differential, selector mechanism and selector forks: Assembly overview |
| 1 - | Differential |
| q | Disassembling and assembling |
| 2 - | Gearbox |
| q | Repairing → Chapter |
| 3 - | Oil drain plug, torque setting → Chapter |
| 4 - | Flange shaft with compression spring |
| q | removing and fitting → Chapter |
| q | Assembling |
| 5 - | 25 Nm conical bolt |
| 6 - | Bolt, 5 Nm and tighten 90 º more |
| q | Self-locking |
| q | Always replace. |
| q | To secure the allotment with grooved ball bearings for the input and secondary shaft → Item |
| 7 - | Hexagon flange nut, 23 Nm |
| q | Gear selection mechanism → Item |
| q | Self-locking |
| q | Always replace. |
| 8 - | O ring |
| q | Always replace. |
| 9 - | Bearing pin |
| 10 - | Bolt, 5 Nm and tighten 90 º more |
| q | Always replace. |
| 11 - | Selector shaft with selector shaft cover |
| q | (Control unit) |
| q | Repairing → Chapter |
| 12 - | Bolt, 5 Nm and tighten 90 º more |
| q | Always replace. |
| 13 - | Bolt, 6 Nm |
| 14 - | Gearbox neutral position sender -G701 - |
| q | For vehicles with start stop system |
| 15 - | Reversing light switch -F4 -, 20 Nm |
| q | Fitted with safety seal just after the gearbox was first mounted as standard |
| 16 - | Seal |
| q | If fitted, always renew |
| 17 - | Gear selection mechanism |
| q | (Selector forks) |
| q | Repairing → Chapter |
| 18 - | Input shaft and output shaft with bearing mounting and deep groove ball bearing |
| q | Replace the allotment whenever it detaches from the gearbox casing |
| q | Remove and install the bearing mounting: Disassembly and assembly of the input shaft → Item |
| q | Disassembly and assembly of the input shaft → Chapter |
| q | Disassembly and assembly of the secondary shaft → Chapter |
| 19 - | Reverse gear pinion axis |
| 20 - | Reverse gear wheel |
| 21 - | Bolt, 25 Nm and tighten 90 º more |
| q | Always replace. |
| q | To fasten reverse gear pinion axis |
| 22 - | Oil collector |
| 23 - | Magnet |
| 24 - | Oil guide |
