SEAT Leon Mk201 · Power transmission
01 · Transmission

Location on gearbox (5-speed automatic gearbox 09B)

Make
SEAT
Model
Leon Mk2
Section
Technical data › Gearbox identification › Location on gearbox
Power transmissionLocation on gearbox
Location on gearbox

Codes -arrow 1-.
5-speed automatic gearbox 09B -arrow 2-
  N37-0871

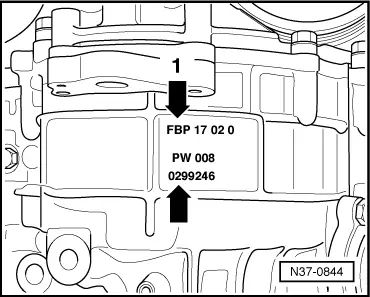

Code letters -arrow 1-
Example:
  N37-0844
FBP17020
IIII
Identification codeDayMonthYear 2000 of manufacture

The gearbox identification code also appears on the vehicle identification plates.
Identification number of the manufacturer -arrow-

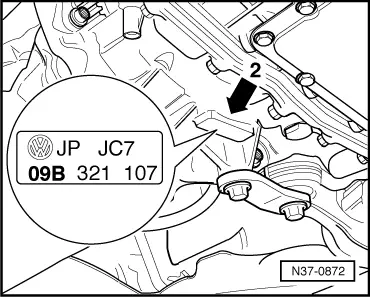

5-speed automatic gearbox 09B -arrow 2-
The gearbox housings of the 5-speed gearbox 09B and the 5-speed gearbox 09A are identical. Only the torque converter housings differ. Consequently, the identification of the 09B gearbox is located on the underside of the converter housing.
  N37-0872

The same page in: Leon Mk1.
