Fabia Mk1

Inspecting the steering joint
Inspecting the steering joint
  Note
t  For these two tests no „play“ may be felt or be visible.
t  Observe the steering joint during the tests.
t  Take into account possible wheel bearing play or „play“ in top suspension strut bearing.
t  Inspect rubber bellows for damage, if necessary replace.

Inspecting axial play
–  Forcefully push the track control arm down and up again.
  S40-0286

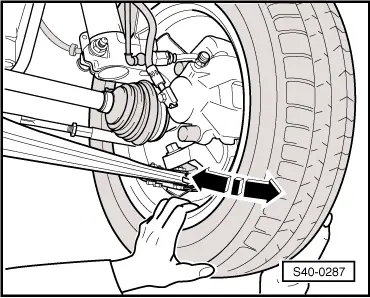

Inspecting radial play
–  Forcefully push the wheel towards the inside and the outside.
  S40-0287
