Assembly bracket

Make

Skoda

Model

Fabia Mk1

Section

Engine assy,cylinder block,crankcase › Removing and installing engine › Assembly bracket

Power unitAssembly bracket

Assembly bracket

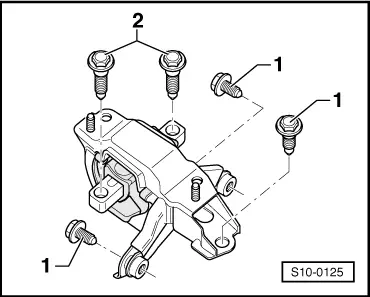

Engine mounting 1 - 20 Nm + torque a further 90° (1/4 turn) - replace 2 - 30 Nm + torque a further 90° (1/4 turn) - replace

Gearbox mount 1 - 50 Nm + torque a further 90° (1/4 turn) - replace 2 - 40 Nm + torque a further 90° (1/4 turn) - replace

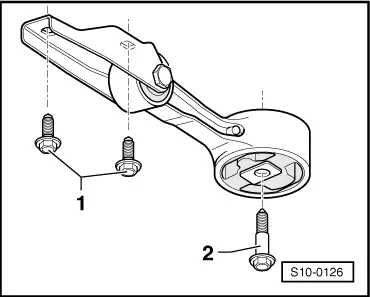

Pendulum support   Note Screw the screws -1- into the elongated holes of the support in such a way that the maximum permissible distance is obtained between the gearbox and the assembly carrier. 1 - 30 Nm + torque a further 90° (1/4 turn) - replace 2 - 40 Nm + torque a further 90° (1/4 turn) - replace
