Fabia Mk1

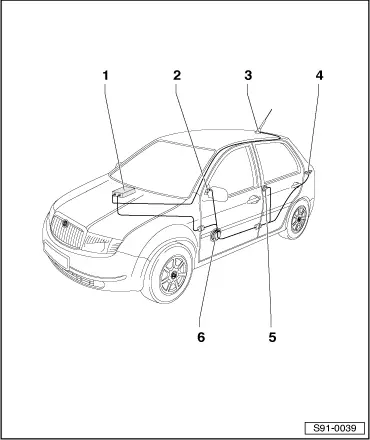

| Overview of radio system |
| 1 - | Radio |
| q | in cover of centre console |
| q | removing and installing → Chapter |
| 2 - | Treble speaker |
| q | nominal resistance = 4 Ω |
| q | in exterior mirror trim panel on inside |
| q | removing and installing → Chapter |
| 3 - | Roof aerial |
| q | with aerial amplifier |
| q | removing and installing → Chapter |
| 4 - | Bass speaker |
| q | nominal resistance = 4 Ω |
| q | removing and installing → Chapter |
| 5 - | Treble speaker |
| q | nominal resistance = 4 Ω |
| q | next to door handle |
| q | removing and installing ⇒ → Chapter |
| 6 - | Bass speaker |
| q | nominal resistance = 4 Ω |
| q | in door trim panel |
| q | removing and installing → Chapter |
