Spare wheel
Spare wheel – Skoda Fabia Mk2  Note
t  The steel rim and the wheel trim cap may differ from the figure.
t  The contact surface tread may differ from the shown contact surface tread.
t  When using anti-theft wheel bolts for steel rims, the anti-theft bolt must be mounted in direction of the valve.

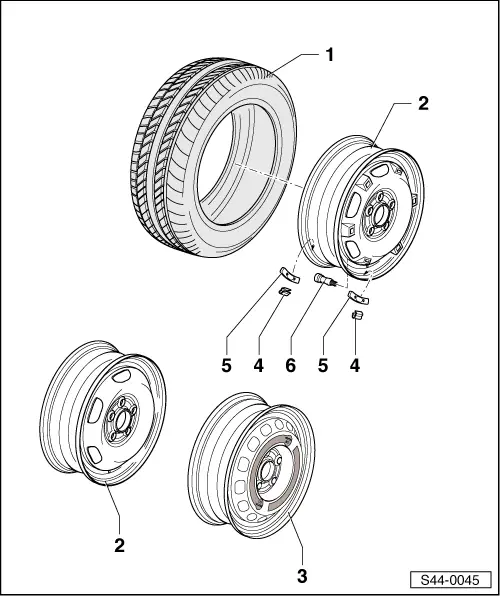

Spare wheel – Skoda Fabia Mk2
1 - Tyres
2 - Steel rim
q   5J x 14, ET 35
q   6J x 14, ET 37
q   6J x 15, ET 43
q   Spare wheel with light alloy rim - special equipment
3 - Steel rim
q   6.5J x 16 ET 42
q   with a danger signal above the permissible high speed (80 km/h; 50mph)
4 - Retaining spring for balancing weights
5 - Balancing weights
q   max. 60 g allowed per rim flange
6 - Valve
q   Assignment → Electronic Catalogue of Original Parts
