Skoda Fabia Mk205 · Power transmission
05 · Transmission

Check gear oil level

Make
Skoda
Model
Fabia Mk2
Section
Gearbox 02R › Gearbox mechanics,operation, construction,diff. › Check gear oil level
Power transmissionCheck gear oil level
Check gear oil level
Gearbox oil specification → Electronic Catalogue of Original Parts.
–  Remove the sound dampening system → Body Work; Rep. gr.50.

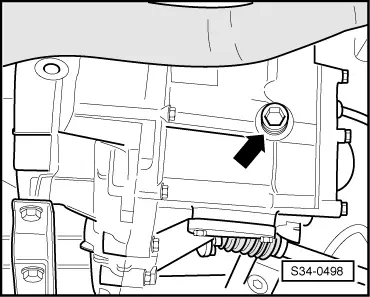

–  Unscrew plug for inspecting gear oil -arrow-.
The oil is at the correct level if the gear is filled up to the lower edge of the oil filler hole.
–  Screw in the screw of the filler hole -arrow- and tighten to tightening torque → Chapter.
If re-filling, do the following:
–  Unscrew plug for inspecting gear oil -arrow-.
–  Pour in gear oil up to lower edge of filler hole.
–  Screw in plug -arrow-.
–  Start engine, engage a gear and allow gearbox to rotate for about 2 minutes.
–  Switch off engine, unscrew plug -arrow- and again top up gear oil to lower edge of filler hole.
–  Screw in the screw of the filler hole -arrow- and tighten to tightening torque → Chapter.
–  Install the noise insulation → Body Work; Rep. gr.50.
  S34-0498
