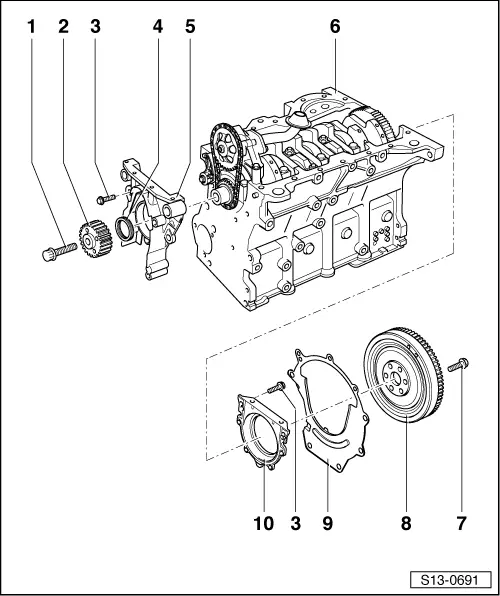

| 1 - | Central screw, 90 Nm + torque a further (90°) 1/4 turn |
| q | replace |
| q | Neither oil nor grease screw |
| q | to release and tighten use counterholder -MP1-310 (3099)- |
| q | when screwing on the counterholder place 2 washers between the timing belt gear and the counterholder |
| 2 - | Crankshaft toothed belt sprocket |
| q | can be installed only in one position |
| q | there must not be any oil present on contact surface between timing belt sprocket and the crankshaft |
| q | Removing and installing, tightening the timing belt → Chapter |
| 3 - | 15 Nm |
| 4 - | Gasket ring |
| q | replace → Chapter |

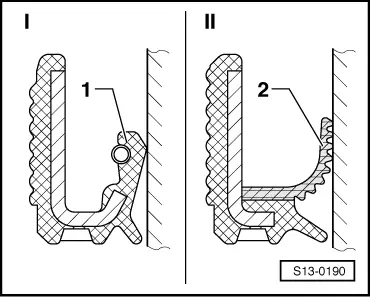

| q | pay attention to different version → Fig. |
| 5 - | Front sealing flange |
| q | must be positioned on dowel sleeves |
| q | removing and installing → Chapter |
| 6 - | Cylinder block |
| q | removing and installing crankshaft → Chapter |
| q | Disassembling and assembling piston and conrod → Chapter |
| 7 - | 60 Nm + torque a further (90°) 1/4 turn |
| q | replace |
| q | tightening may occur in successive stages |
| 8 - | The two-mass flywheel |
| q | can be installed only in one position |
| q | removing and installing flywheel → Chapter |
| 9 - | Intermediate plate |
| q | must be positioned on dowel sleeves |
| q | do not damage/bend during assembly work |

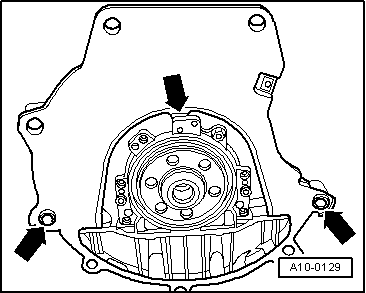

| q | attached to sealing flange → Fig. |
| 10 - | Rear sealing flange with gasket ring |
| q | must be replaced completely |
| q | must be positioned on dowel sleeves |
| q | remove oil pan for removing and installing → Chapter |
| q | clean sealing surface before installing |
| q | with seal for cylinder block |
| q | install new sealing flange with guide bushing (do not pull guide bushing out of gasket ring before installing) |
| q | the sealing flange with PTFE gasket ring is supplied as a spare part |
| q | install gasket ring dry, the crankshaft stub must be free of oil and grease |
|
|
