Octavia Mk2
| Engine with identification characters BKC, BXE |

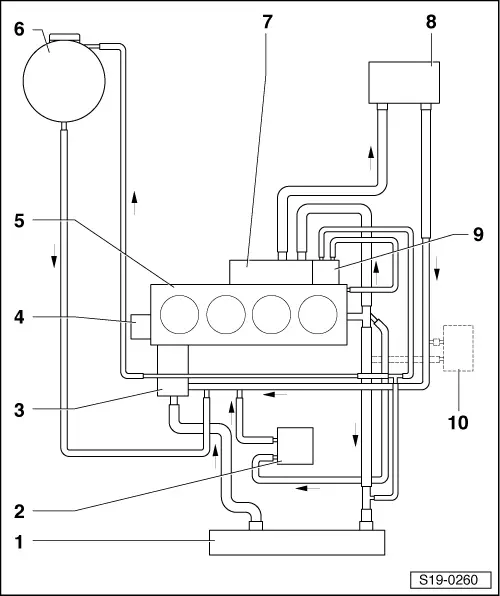

| For vehicles without auxiliary heating. |
| 1 - | Radiator |
| q | removing and installing → Chapter |
| q | fill with fresh coolant after replacing → Chapter |
| 2 - | Oil cooler |
| q | fill with fresh coolant after replacing → Chapter |
| q | removing and installing → Chapter |
| 3 - | Coolant regulator |
| q | removing and installing → Chapter |
| q | check: heat up regulator in a water bath |
| q | Start of opening approx. 87 °C |
| q | Full opening approx. 102°C |
| q | Stroke min. 7 mm |
| 4 - | Coolant pump |
| q | removing and installing → Chapter |
| 5 - | Cylinder head/cylinder block |
| q | fill with fresh coolant after replacing → Chapter |
| 6 - | Expansion reservoir |
| q | with cap |
| q | Testing the pressure relief valve in the cap → Anchor |
| 7 - | Radiator for exhaust gas recirculation |
| q | fill with fresh coolant after replacing → Chapter |
| q | removing and installing → Chapter |
| 8 - | Heat exchanger of heating system |
| q | fill with fresh coolant after replacing → Chapter |
| 9 - | Radiator flap for exhaust gas recirculation |
| 10 - | ATF radiator |
| q | for models with an automatic gearbox |
| q | fill with fresh coolant after replacing → Chapter |
| For vehicles with auxiliary heating |
| 1 - | Radiator |
| q | removing and installing → Chapter |
| q | fill with fresh coolant after replacing → Chapter |
| 2 - | Oil cooler |
| q | fill with fresh coolant after replacing → Chapter |
| q | removing and installing → Chapter |
| 3 - | Coolant pump/coolant regulator |
| q | removing and installing → Chapter |
| q | Removing and installing coolant regulator → Chapter |
| q | check: heat up regulator in a water bath |
| q | Start of opening approx. 87 °C |
| q | Full opening approx. 102°C |
| q | Stroke min. 7 mm |
| 4 - | Cylinder head/cylinder block |
| q | fill with fresh coolant after replacing → Chapter |
| 5 - | Auxiliary heating |
| 6 - | Expansion reservoir |
| q | with cap |
| q | Testing the pressure relief valve in the cap → Chapter |
| 7 - | Intake manifold |
| 8 - | Radiator for exhaust gas recirculation |
| q | fill with fresh coolant after replacing → Chapter |
| q | removing and installing → Chapter |
| 9 - | Radiator flap for exhaust gas recirculation |
| 10 - | Non-return valve |
| q | integrated into the coolant hose |
| q | not always visible from the outside |
| 11 - | Heat exchanger of heating system |
| q | fill with fresh coolant after replacing → Chapter |
| 12 - | Coolant shut-off valve of the heating system -N279- |
| 13 - | ATF radiator |
| q | for models with an automatic gearbox |
| q | fill with fresh coolant after replacing → Chapter |
