Removing and installing automatic gearbox control unitJ217 (Fabia II, Roomster, Rapid)
Removing and installing automatic gearbox control unit -J217- (Fabia II, Roomster, Rapid)
Fitting location: The control unit is located at the battery cover.
Removing the control unit
  WARNING
Observe measures when disconnecting and connecting the battery → Electrical System; Rep. gr.27.
–  Disconnect the battery-earth strap with the ignition off → Electrical System; Rep. gr.27.
–  Unlock the plug connection from the gearbox control unit and disconnect.

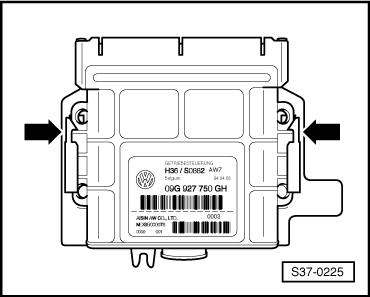

–  Press off locking tabs -arrows- from control unit holder.
–  Remove control unit from the top.
  Note
The adaptation values in the gearbox control unit are reset when the plug connection of the gearbox control unit is separated. The control unit must re-initialise these values after re-start. During this „initialisation“ the gearshift quality can be worse than usual.
Install
  S37-0225
–  Insert the control unit at the battery cover until it clicks into the position of the locking tabs -arrows-.
–  Mount the plug connection of the gearbox control unit.
  WARNING
Observe measures when disconnecting and connecting the battery → Electrical System; Rep. gr.27.
–  Connect earth strap of battery → Electrical System; Rep. gr.27.
  S37-0225
