Removing and installing ATF radiator
Removing and installing ATF radiator
Special tools and workshop equipment required
t  Hose clamps -MP7-602 (3094)-
Remove ATF radiator
–  Remove engine cover at the top.
–  Remove air filter → Engine; Rep. gr.24.
  WARNING
Observe measures when disconnecting and connecting the battery → Electrical System; Rep. gr.27.
–  Remove battery and battery tray → Electrical System; Rep. gr.27.
–  Mark hoses of ATF radiator to ATF radiator, in order to prevent interchanging when installing.
  Note
Depending on the as-built configuration a small plastic tube is located in the feed of the ATF radiator, which must be re-installed during installation.

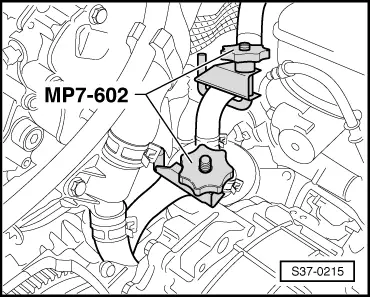

–  Clamp off the ATF-radiator hoses with hose clamps -MP7-602 (3094)- and remove from ATF-radiator.
  S37-0215
–  Remove the ATF radiator -1- from the gearbox -arrow A-.
Install ATF radiator
Installation is carried out in the reverse order. Pay attention to the following:
–  Replace O-rings of ATF radiator → Electronic Catalogue of Original Parts.
–  The disc spring Pos. 6 must be installed in such a way that it rests on the washer Pos. 5 and the curved side of the disc spring points upwards → Chapter

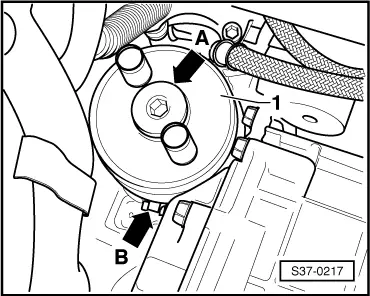

–  When installing the ATF radiator -1- position the peg -arrow B- in the recess in the gearbox housing.
  S37-0217
ComponentNm
ATF radiator to gearbox36


–  Connect hoses of ATF radiator according to the markings onto the ATF radiator.
  Note
Depending on the as-built configuration a small plastic tube is located in the feed of the ATF radiator, which must be re-installed during installation.
–  Check coolant level in the cooling system → Engine; Rep. gr.19.
–  Inspecting ATF level and if necessary topping up → Chapter.
  S37-0215
