Superb

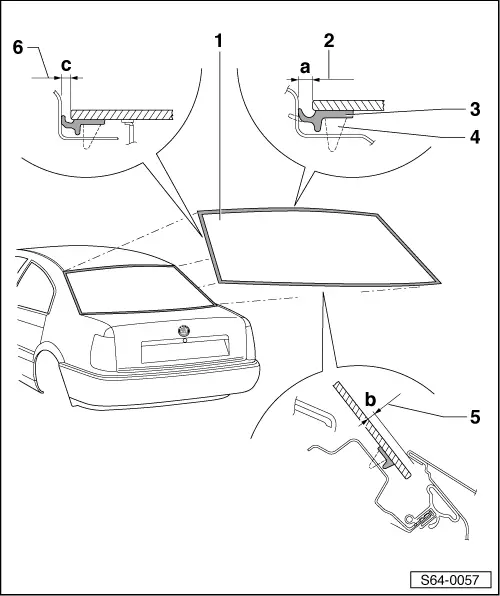

| Summary of components of rear window |
| 1 - | Rear window |
| q | Observe dimensions -a-, -b- and -c- |
| 2 - | Dimension a = 4 mm. |
| 3 - | Sealing section |
| q | is part of the rear window |
| 4 - | PUR - adhesive cement |
| 5 - | Dimension b = 6.5 mm |
| 6 - | Dimension c = 4.5 mm |
