Shift mechanism

Make

Skoda

Model

Superb

Section

Manual gearbox 01E › Gearbox mechanics,operation, construction,diff. › Shift mechanism

Power transmissionShift mechanism

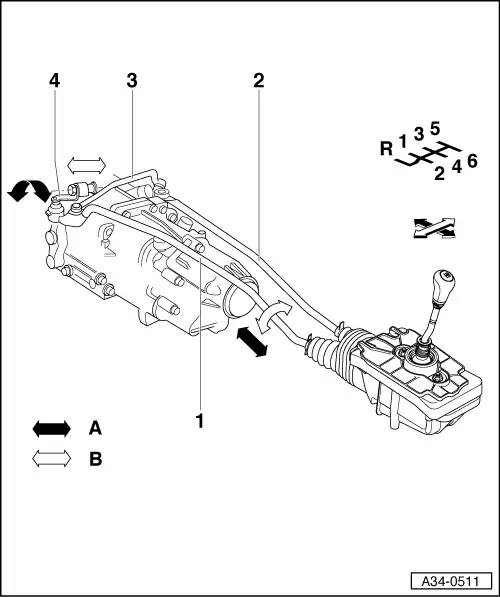

Fitting location of shift mechanism

-Arrow A- Shift movement

-Arrow B- Selector movement

1 -	Gear shift rod

2 -	Push rod - front

3 -

Link rod

4 -	Gearshift lever

  Note

Grease bearing and friction surfaces with Polycarbamide Grease -G 052 142 A2-.

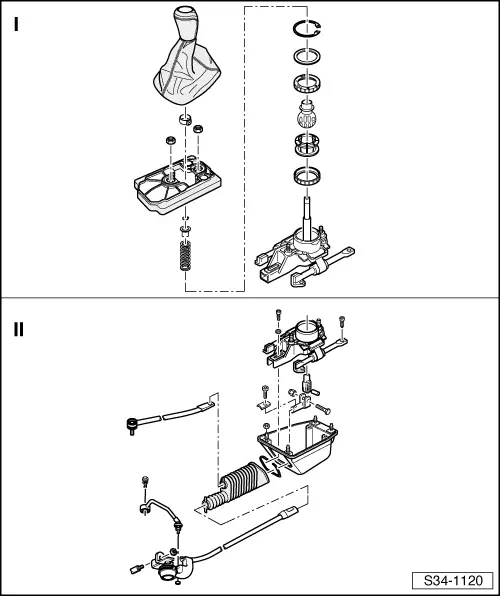

I -	Repairing gear shift lever and rear push rod → Chapter

II -	Repairing the shift rod, link rod and forward push rod → Chapter

Removing and installing shift lever and push rod - rear → Chapter

Removing and installing shift mechanism → Chapter

Setting the shift mechanism → Chapter

06 Transmission
