Fixing the assembly carrier and the console - aluminium assembly carrier
Fixing the assembly carrier and the console - aluminium assembly carrier
Special tools and workshop equipment required
t  Fixing device -T10096-
t  Engine/gearbox jack, e.g. -V.A.G 1383/A-

In order to fix the assembly carrier with the consoles, the fixing devices -T10096- must be successively screwed into the positions -1-, -2-, -3- and -4-.
  Note
The fixing devices -T10096- must only be tightened to maximum 20 Nm as otherwise the fixing bolt thread becomes damaged.
  N40-10287
Fix the bracket:
–  Successively replace the fixing bolts of the bracket/body on both sides with fixing devices -T10096- and tighten to 20 Nm.

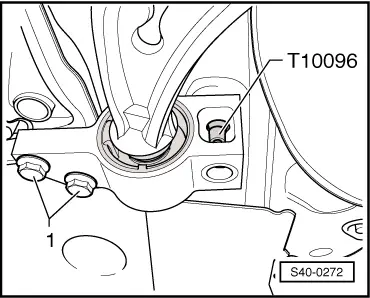

  S40-0272
Fix the consoles:
–  Successively replace the fixing screws on the consoles with fixing devices -T10096- and tighten to 20 Nm.
The position of the front axle is now fixed.
Further remove the anti-roll bar → Chapter.
Further remove the steering gear → Chapter.
Release:
Releasing is carried out in the reverse order. Make sure that the fixing devices -T10096- are replaced successively with new screws.
–  Perform a test drive.
–  Check the steering wheel position during the test drive.
–  Perform chassis alignment → Chapter.
  S40-0269
Tightening torques:
Assembly carrier to body
t  Use new screws!
70 Nm + 135°
Wheel bolts120 Nm
