Steering column RHD - vehicles with right-hand drive

Make

Skoda

Model

Yeti

Section

Axles, steering › Steering › Steering column RHD - vehicles with right-hand drive

Running gearSteering column RHD - vehicles with right-hand drive

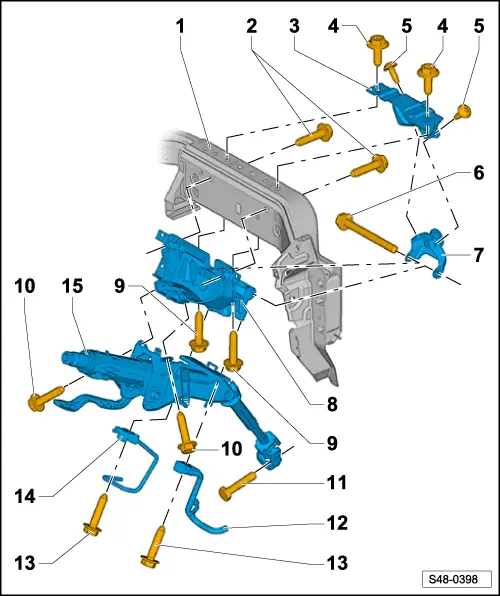

Summary of components of steering column - vehicles without knee airbag

Diagram not available  Note

t	Observe handling and transportation of the steering column → Chapter.

t	Always replace corroded self-locking nuts and screws.

1 -	Holder (central pipe)

2 -	Screw, 20 Nm

q

M8 x 85

3 -	Frequency link (top part)

q	removing and installing → Chapter

4 -	Screw, 20 Nm

q

M8 x 24

5 -	Screw, 9 Nm

q

M6 x 16

6 -	Screw, 20 Nm

q

M8 x 100

7 -	Frequency link (bottom part)

q	removing and installing → Chapter

8 -	Bracket (for steering column)

q	removing and installing → Chapter

9 -	Screw, 20 Nm

q

M8 x 30

10 -	Screw, 20 Nm

q

M8 x 30

11 -	Screw, 30 Nm

q	replace after each removal

q	→ Electronic Catalogue of Original Parts

12 -	Crash strut

q	for brake pedal

q	Assignment → Electronic Catalogue of Original Parts

13 -	Screw, 20 Nm

q

M8 x 30

14 -	Crash strut

q	for the clutch pedal

q	Assignment → Electronic Catalogue of Original Parts

15 -	Steering column

q	Observe handling and transportation → Chapter

q	Crash struts for pedals together with the steering column are fixed at the bracket (central pipe).
