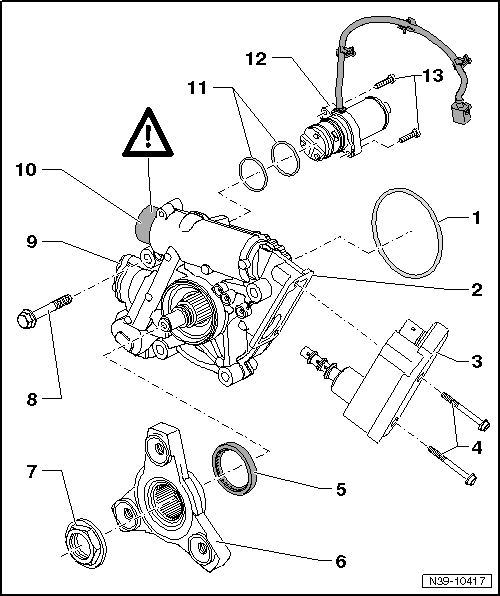

| Summary of components - Disassembling and assembling „Haldex coupling of the 4th generation“ (final drive „0BR“) |
| 1 - | O-ring |
| q | moisten with high efficiency oil for Haldex coupling and insert |
| q | always replace → Electronic Catalogue of Original Parts |
| 2 - | housing for Haldex coupling |
| q | Removing and installing Haldex coupling completely → Chapter |
| 3 - | Four-wheel drive control unit -J492- |
| q | with control valve of opening degree of coupling -N373- |
| q | removing and installing → Chapter |
| 4 - | 6 Nm |
| 5 - | Gasket ring for flange of propshaft |
| q | removing and installing → Chapter |
| 6 - | Flange for propshaft |
| q | removing and installing → Chapter |
| 7 - | Nut, 210 Nm |
| q | replace → Electronic Catalogue of Original Parts |
| q | secure with locking agent -D 000 600- |
| 8 - | 50 Nm |
| q | 4 pieces |
| q | for housing of Haldex coupling Pos. 2 to rear final drive |
| 9 - | Cover |
| q | for oil filter housing |
| q | Oil filter change is not necessary |
| 10 - | Cover |
| q | for pressure tank |
WARNING
|
| 11 - | O-ring |
| q | 2 pieces |
| q | Diameter 34 mm |
| q | for pump for Haldex coupling -V181- |
| q | moisten with high efficiency oil for Haldex coupling and insert |
| q | always replace → Electronic Catalogue of Original Parts |
| 12 - | Pump for Haldex coupling -V181- |
| q | removing and installing → Chapter |
| 13 - | 6 Nm |
