Output shaft gears 1-4 for Yeti Gearbox 02Q: Mechanics, Functioning

Control measurement
Control measurement
l  Determined adjusting washer fitted.

–  Mount the measuring tools and fasten with screw -arrow- to the clutch housing.
–  Set dial gauge (3 mm measuring range) to „0“ with a 1 mm bias.
–  Slacken fixing screws of clutch housing/gearbox housing crosswise, until the screws release the gearbox housing or the output shaft.
–  The dial gauge must indicate a value of 0.15 mm to 0.25 mm if the adjusting washer has been correctly chosen.

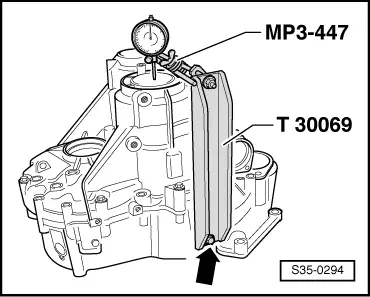

  S35-0294
