Overview of the aerial systems
Diagram not available  Note
t  The number of components of the aerial system depends on the vehicle equipment.
t  Further description → No.72.

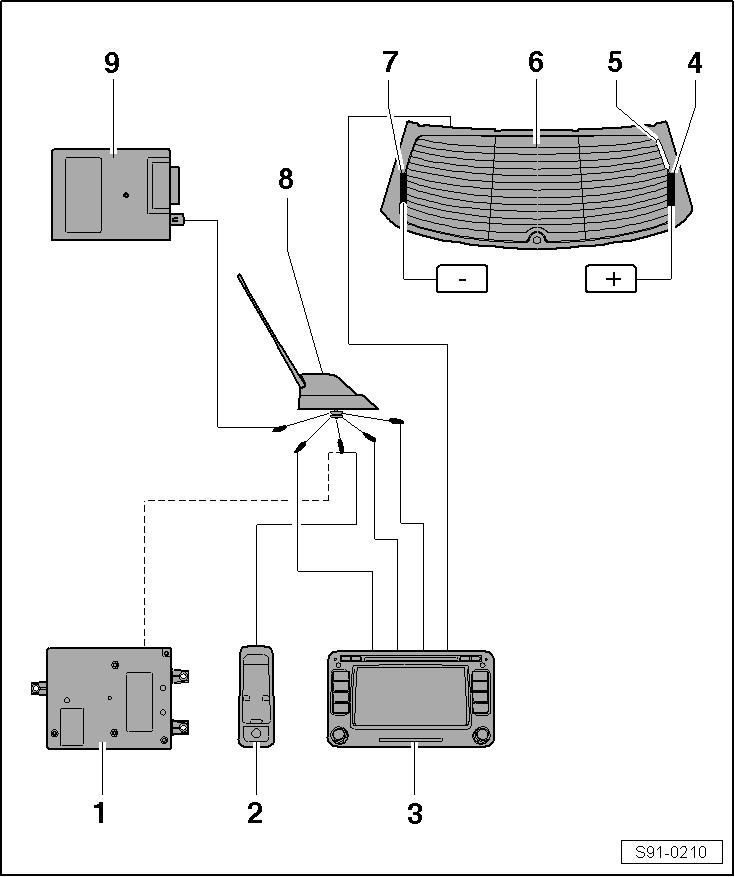

Aerial systems – Skoda Yeti
1 - Control unit for the mobile phone operating electronics -J412-
q   as of CW 22.11, a Bluetooth module is integrated in the navigation system Amundsen which fulfills the function of the GSM II mobile phone pre-installation. The control unit for the mobile phone operating electronics -J412- is not available for this equipment. The control unit for the mobile phone operating electronics -J412- Pos. -1- is still mounted separately for the GSM IIl mobile phone pre-installation.
2 - Mount for mobile phone
3 - Radio/navigation system
4 - Frequency filter for the frequency modulation (FM) in the positive cable -R179-
q   installed in the wiring loom
q   only on vehicles with rear window aerial
5 - Aerial module -R108- (amplifier)
q   removing and installing → Chapter
6 - Rear window aerial -R130-
q   for radios with two tuners (two antenna sockets)
7 - Frequency filter for the frequency modulation (FM) in the negative cable -R178-
q   installed in the wiring loom
q   only on vehicles with rear window aerial
8 - Roof aerial
9 - Auxiliary heating receiver
