Skoda Yeti04 · Vehicle electrics
04 · General

Fuse holder and relay carrier

Make
Skoda
Model
Yeti
Section
Electrical System › Wiring › Fuse holder and relay carrier
Vehicle electricsFuse holder and relay carrier
Removing and installing fuse holder in the dash panel
Removing
–  Disconnect battery earth strap → Chapter.

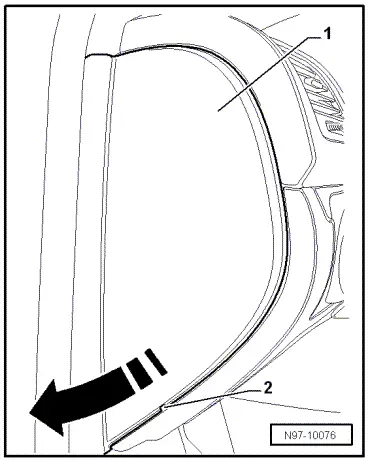

–  Insert the screwdriver in the recess -2-, lever out the side cover -1--arrow- and remove from the dash panel.
  N97-10076
–  Remove the bottom part of the dash panel -1- on the driver's side → Body Work; Rep. gr.70.
–  Unscrew the fixing screws -arrows- (3 Nm), slacken the fuse holder -2- and unhook towards the bottom.
Install
Installation is performed in the reverse order, pay attention to the following points:
–  Pay attention to the correct work sequence when connecting the battery → Chapter.
  S97-7620
