Maintenance, Body and Chassis Sheet Metal Parts, Frame (Welding Seams): Specifications

1 -

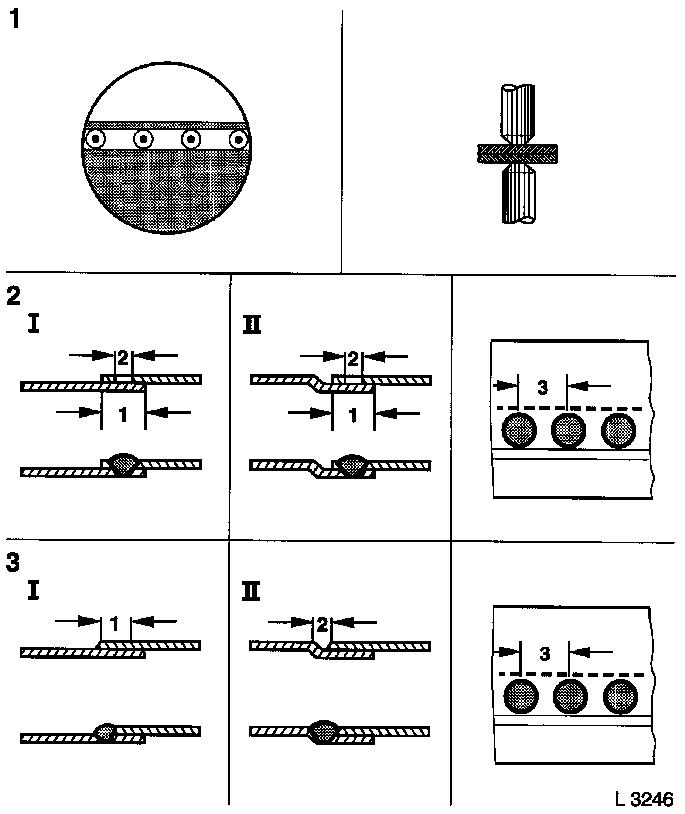

Resistance spot welding

2 -

Plug Spot Welding

I

overlapped

II

offset

1

10-14 mm/0.39-0.55 in.

2

6 mm Ø with 0.75 and 0.88 mm plates

7 mm Ø 1.5 mm plates

3

30-40 mm/1.18-1.575 in.

3 -

Stitch Seam Spot Welding

I

overlapped

II

offset

1

10-14 mm/0.39-0.55 in.

2

3-5 mm/0.12-0.20 in.

3

30-40 mm/1.18-1.575 in.

4 -

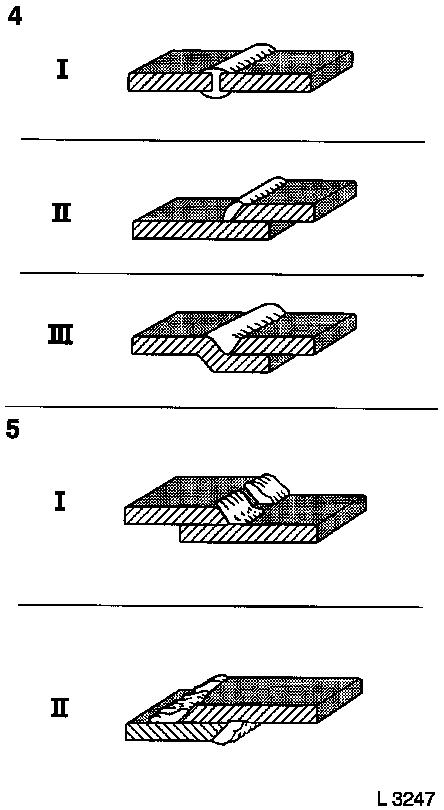

Full Seam

I

Butt welded

II

overlapped

III

offset

5 -

Full Seam, Interrupted

I

overlapped – both sides

II

overlapped – both sides
