Lettering, Replace (Model F69)

  Remove

Heat lettering with hot air dryer and detach, clean adhesive area with cleaning petrol or silicone remover.

  Install

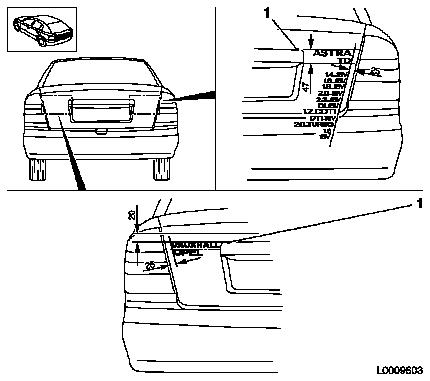

Extend upper edge of luggage compartment lid outside handle (1) with paper masking tape. Position lettering according to dimensions and attach.

Caution

After adhesion of lettering, remove paper masking tape.

Object Number: 2413216  Size: DEFAULT
