Special Service Tools – Body

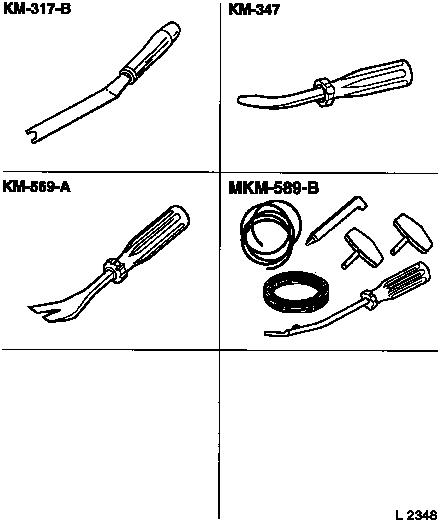

KM-317-B

Remover

For removal of door handle and window crank.

KM-347

Installer

For installation of glass screens.

KM-569-A

Plug Lifter

To press off clips from inner panelling.

MKM-589-B

Wire Cutter

To cut out cemented windows


Object Number: 2415485  Size: DEFAULT

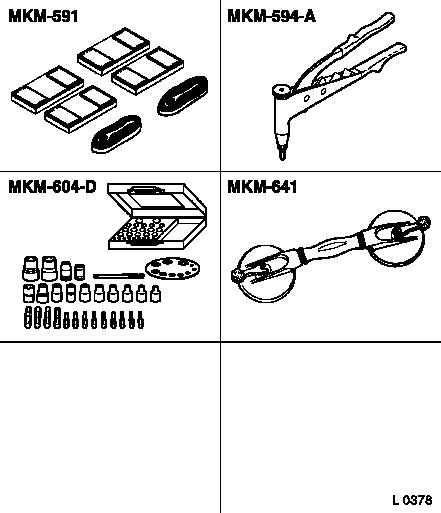

MKM-591

Pair of Tensioning Belts

Fastening screens during installation.

MKM-594-A

Hand Rivet Tongs

Assembly of rivet nut (Opel Fix)

MKM-604-D

Torx Bit and Socket Set

MKM-641

Suction Lifter

To hold screens during removal and installation.


Object Number: 2414278  Size: DEFAULT

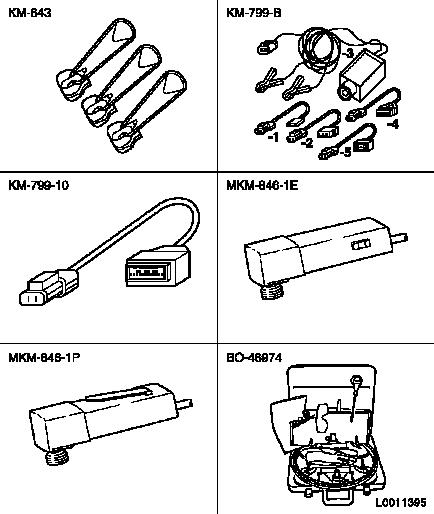

KM-643

Mounting Set

Attachment of centre armrest upholstery.

KM-799-B

Airbag Deployment Unit

To deploy airbag units in installation position.

Adapter KM-799-5 for Control Unit SAB6

KM-799-10

Adapter Cable

Intentional deployment of airbag and seat belt tensioner with KM-799-B. For Control Unit SAB6X (seat occupancy detection)

MKM-846-1E

Cutter, electric

To cut out cemented glass screens.

MKM-846-1P

Cutter, pneumatic

To cut out cemented glass screens.

BO-46974

Glass removing system



Object Number: 2414056  Size: DEFAULT

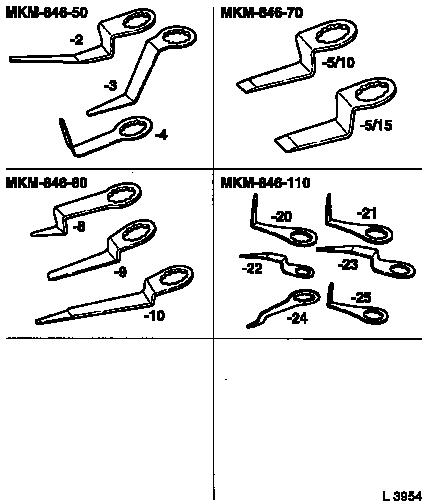

MKM-846-50

Blade Set

of which MKM-846-2 for cutting out tailgate screen Models F08, F48.

MKM-846-70

Scraper Set

To cut down adhesive beads.

MKM-846-80

Blade Set

of which MKM-846-10 to cut out tailgate screen Models F08, F48.

MKM-846-110

Blade Set

To cut out windscreen.

To cut out tailgate screen Model F08, F48.

Of which, MKM-846-23 used to cut out rear quarter window, Model F07.


Object Number: 2416706  Size: DEFAULT

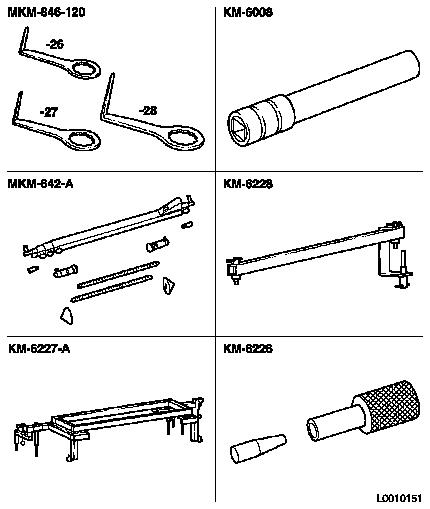

MKM-846-120

Blade Set

of which MKM-846-27 to cut out front and rear screen Model F69.

of which, MKM-846-27 used to cut out windscreen, rear screen and rear quarter window, Model F07.

KM-6008

Remover/Installer

Reel retractor – front seat belt.

MKM-642-A

Checking and Adjusting Tool

Checking operations on folding roof, longitudinal direction

KM-6228

Checking and Adjusting Tool

To check and adjust the lock mounts with respect to one another and to the mounting point under the upper edge of the windscreen cross strut

KM-6227-A

Checking and Adjusting Tool

Checking operations for soft top installed, measuring operations for soft top removed, adjustment aid for rear quarter panels when replacing.

KM-6226

Assembly Tool

To assemble O-ring of hydr. hoses in folding roof compartment.


Object Number: 2413609  Size: DEFAULT
