Special Service Tools – Body
|

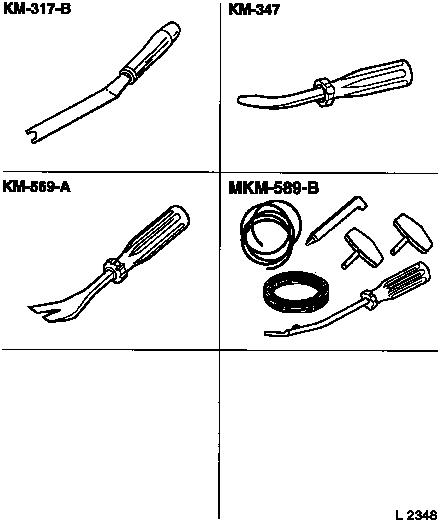

KM-317-B
|
Remover
|
|
For removal of door handle and window crank.
|
|
KM-347
|
Installer
|
|
For installation of glass screens.
|
|
KM-569-A
|
Plug Lifter
|
|
To press off clips from inner panelling.
|
|
MKM-589-B
|
Wire Cutter
|
|
To cut out cemented windows
|
|
|
|

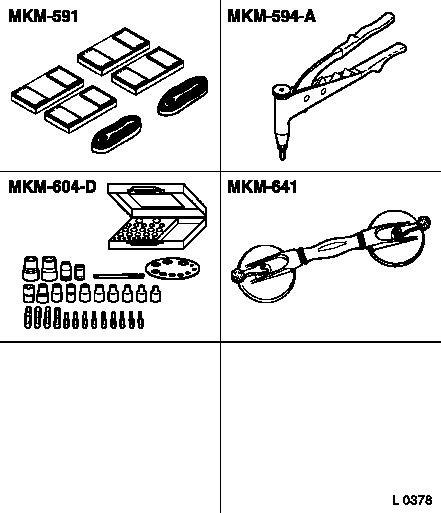

MKM-591
|
Pair of Tensioning Belts
|
|
Fastening screens during installation.
|
|
MKM-594-A
|
Hand Rivet Tongs
|
|
Assembly of rivet nut (Opel Fix)
|
|
MKM-604-D
|
Torx Bit and Socket Set
|
|
MKM-641
|
Suction Lifter
|
|
To hold screens during removal and installation.
|
|
|
|

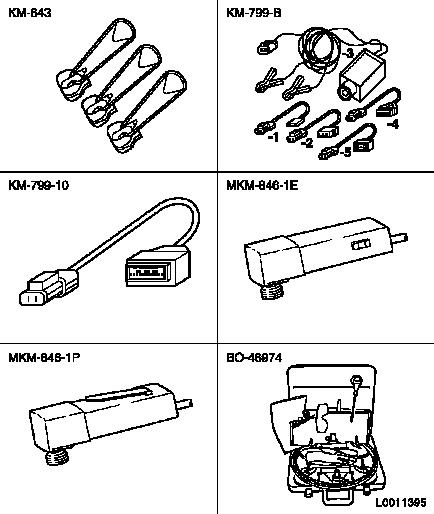

KM-643
|
Mounting Set
|
|
Attachment of centre armrest upholstery.
|
|
KM-799-B
|
Airbag Deployment Unit
|
|
To deploy airbag units in installation position.
|
|
Adapter KM-799-5 for Control Unit SAB6
|
|
KM-799-10
|
Adapter Cable
|
|
Intentional deployment of airbag and seat belt tensioner with
KM-799-B. For Control Unit SAB6X (seat occupancy detection)
|
|
MKM-846-1E
|
Cutter, electric
|
|
To cut out cemented glass screens.
|
|
MKM-846-1P
|
Cutter, pneumatic
|
|
To cut out cemented glass screens.
|
|
BO-46974
|
Glass removing system
|
| |
|
|
|

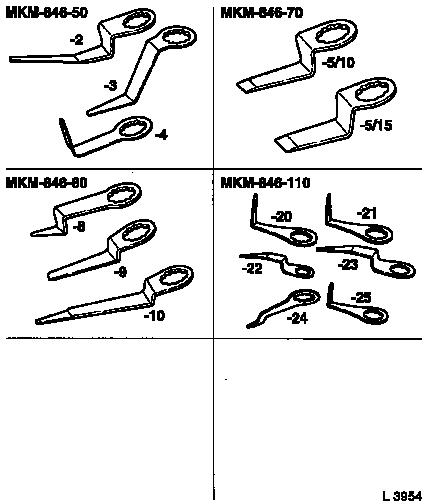

MKM-846-50
|
Blade Set
|
|
of which MKM-846-2 for cutting out tailgate screen Models F08,
F48.
|
|
MKM-846-70
|
Scraper Set
|
|
To cut down adhesive beads.
|
|
MKM-846-80
|
Blade Set
|
|
of which MKM-846-10 to cut out tailgate screen Models F08,
F48.
|
|
MKM-846-110
|
Blade Set
|
|
To cut out windscreen.
|
|
To cut out tailgate screen Model F08, F48.
|
|
Of which, MKM-846-23 used to cut out rear quarter window, Model
F07.
|
|
|
|

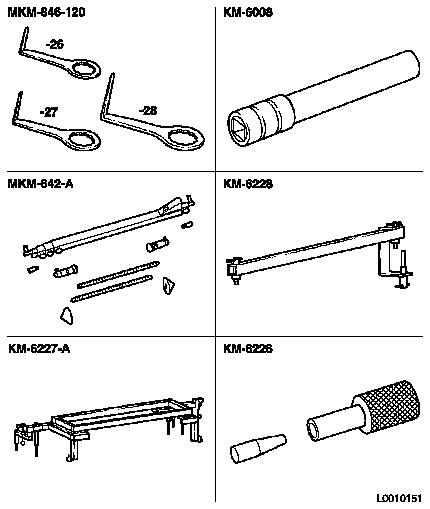

MKM-846-120
|
Blade Set
|
|
of which MKM-846-27 to cut out front and rear screen Model
F69.
|
|
of which, MKM-846-27 used to cut out windscreen, rear screen and
rear quarter window, Model F07.
|
|
KM-6008
|
Remover/Installer
|
|
Reel retractor – front seat belt.
|
|
MKM-642-A
|
Checking and Adjusting Tool
|
|
Checking operations on folding roof, longitudinal direction
|
|
KM-6228
|
Checking and Adjusting Tool
|
|
To check and adjust the lock mounts with respect to one another
and to the mounting point under the upper edge of the windscreen
cross strut
|
|
KM-6227-A
|
Checking and Adjusting Tool
|
|
Checking operations for soft top installed, measuring operations
for soft top removed, adjustment aid for rear quarter panels when
replacing.
|
|
KM-6226
|
Assembly Tool
|
|
To assemble O-ring of hydr. hoses in folding roof
compartment.
|
|
|
|
