Contact Unit, Remove and Install
Caution
Disconnect battery and wait 1 minute until the capacitor has
discharged.
 Remove
|
Driver's side airbag unit – see operation "Airbag Unit
– Driver's Side, Remove and Install", steering wheel –
see operation, "Steering Wheel, Remove and Install (Vehicles with
Airbag) in group "M".

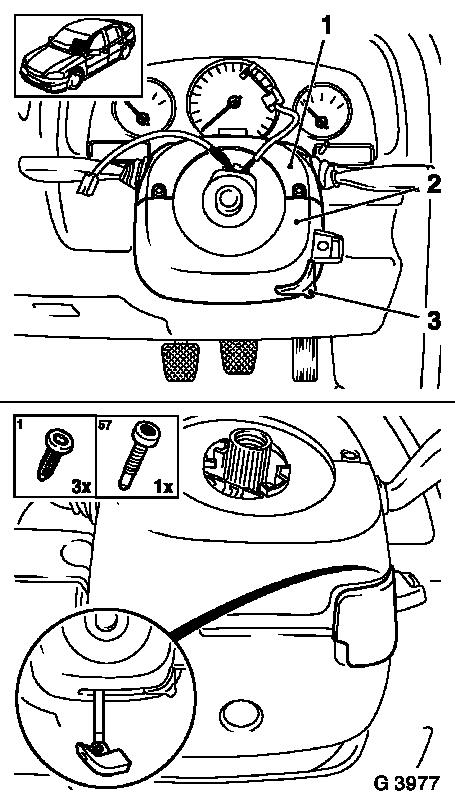

Remove signal switch panelling (1, 2, 3) – see operation
"Panelling – Signal Switch, Remove and Install".
|
|
Remove
|
Remove contact unit wiring harness plug (1), carefully release
the four contact unit clips (5) and remove contact unit.
|
|
Caution
Do not release locking device and steering lock until
re-installation!
If contact unit is removed! Establish centre position –
only necessary if locking device (3) and/or steering lock were
accidentally released.
Pressing locking device, carefully turn inner part of contact
unit counter-clockwise until required force noticeably increases.
Then turn back approx. 2.5 revolutions, then again in original
direction until arrows (4) coincide.
Install
|
When installing a new contact unit, remove transport lock (1).
New contact unit is always located in the centre position.
Position contact unit with the guide pins and engage all the
clips in parallel and uniformly, wiring harness plug for contact
unit.
Caution
Ensure correct seating of clips (2). If damaged, replace the
contact unit.
Install
Install signal switch panelling, steering wheel, driver's side
airbag unit, connect battery.
|
|
|
|
