Rear Engine Damping Block, Remove and Install (Steering)

Make

Vauxhall

Model

Astra G

Section

Repair Instructions › Rear Engine Damping Block, Remove and Install

SteeringRear Engine Damping Block, Remove and Install

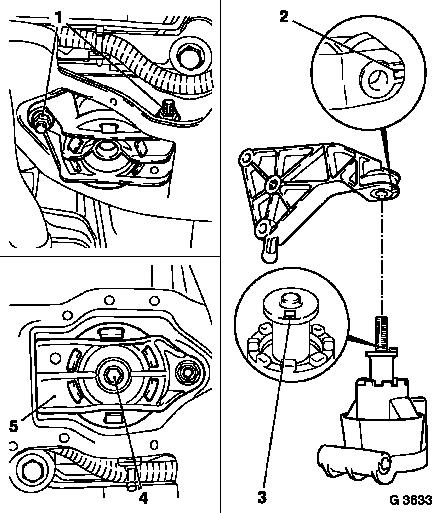

Rear Engine Damping Block, Remove and Install   Remove Remove fastening bolts (1) and (4). Remove engine damping block (5) from front axle body and from bracket.   Install Attach engine damping block to bracket with new fastening nuts, thereby ensuring that groove (3) is seated in the recess (2) – tightening torque 55 Nm / 41 lbf. ft. Attach engine damping block to front axle body with new fastening nuts – tightening torque 55 Nm / 41 lbf. ft.
