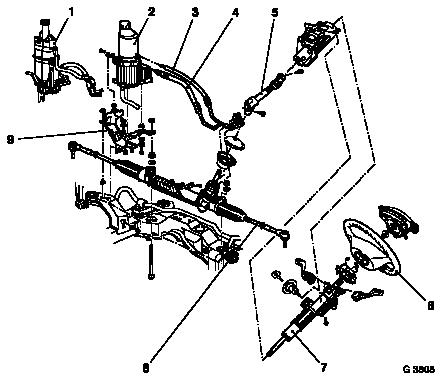

Illustration, Steering

1. Electro-hydraulic Supply Unit (Delphi)
2. Electro-hydraulic Supply Unit (TRW)
3. Return Line
4. Pressure Line
5. Intermediate Shaft
6. Steering wheel
7. Steering Column Assembly
8. Steering Gear
9. Electro-hydraulic Supply Unit Bracket (TRW)

Object Number: 2397954  Size: DEFAULT
