Illustration of Brake System

Make

Vauxhall

Model

Astra H

Section

Rear Wheel Brake › Component Locator › Illustration of Brake System

BrakesIllustration of Brake System

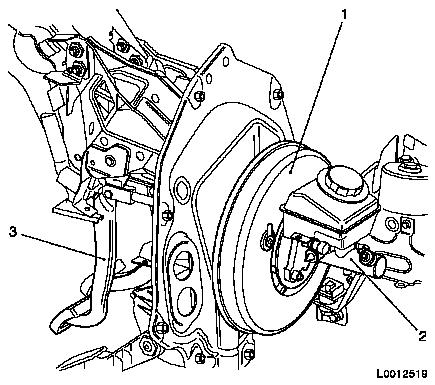

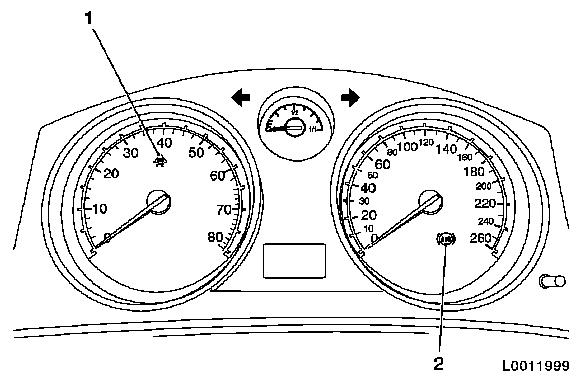

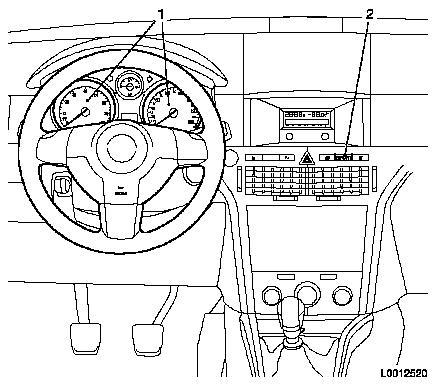

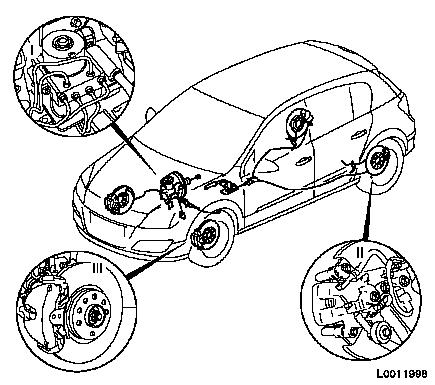

Illustration of Brake System Note:   The following illustrations show the location of different components for vehicles with left-hand drive. For vehicles with right-hand drive, the brake servo and brake master cylinder are on the right-hand side. Hydraulic modulator Rear Wheel Brakes Front Wheel Brake ABS and ESP indicator lights Sport button 1. ABS indicator light 2. ESP indicator light 1. Brake servo 2. Brake master cylinder with brake fluid reservoir 3. Brake pedal

08 Brakes
