Vauxhall Astra H08 · Brakes
08 · Brakes

Illustration of Brake System (Rear Wheel Brake)

Make
Vauxhall
Model
Astra H
Section
Rear Wheel Brake › Repair Instructions › Illustration of Brake System
BrakesIllustration of Brake System

Illustration of Brake System

Object Number: 3447135 Size: DEFAULT

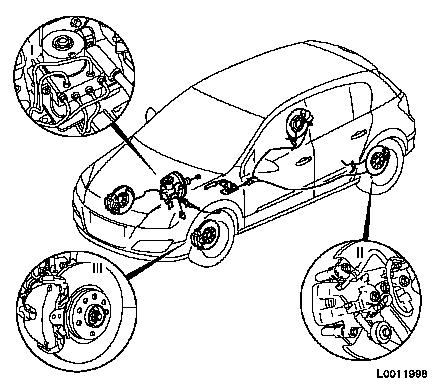

Object Number: 3447197 Size: DEFAULT

Note:   The following illustrations show the location of different components for vehicles with left-hand drive. For vehicles with right-hand drive, the brake servo and brake master cylinder are on the right-hand side.

  1. Hydraulic modulator
  2. Rear Wheel Brakes
  3. Front Wheel Brake

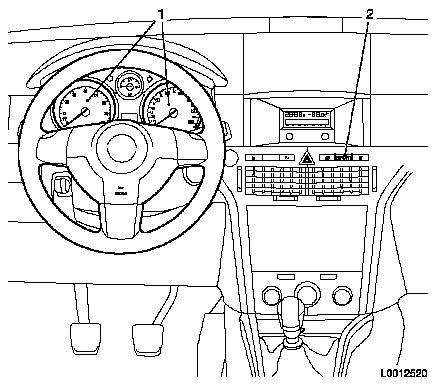

Object Number: 3447566 Size: DEFAULT

  1. ABS and ESP indicator lights
  2. Sport button

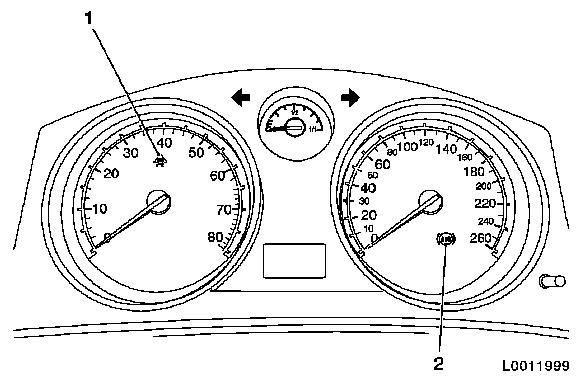

Object Number: 3447198 Size: DEFAULT

1. ABS indicator light
2. ESP indicator light

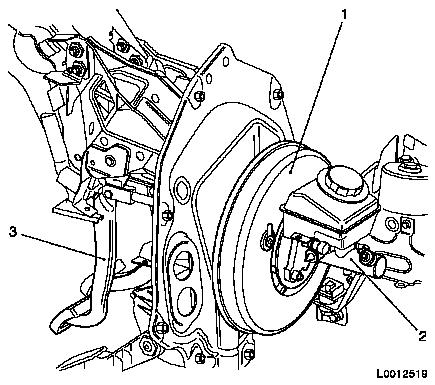

Object Number: 3447565 Size: DEFAULT

1. Brake servo
2. Brake master cylinder with brake fluid reservoir LUREF_1.gif LUREF_1.gif
3. Brake pedal
