Liftgate Latch Striker Replacement
Callout
|
Component Name
|
Preliminary Procedure
Remove rear end trim finish panel. Refer to
Rear End Trim Finish Panel Replacement .
|

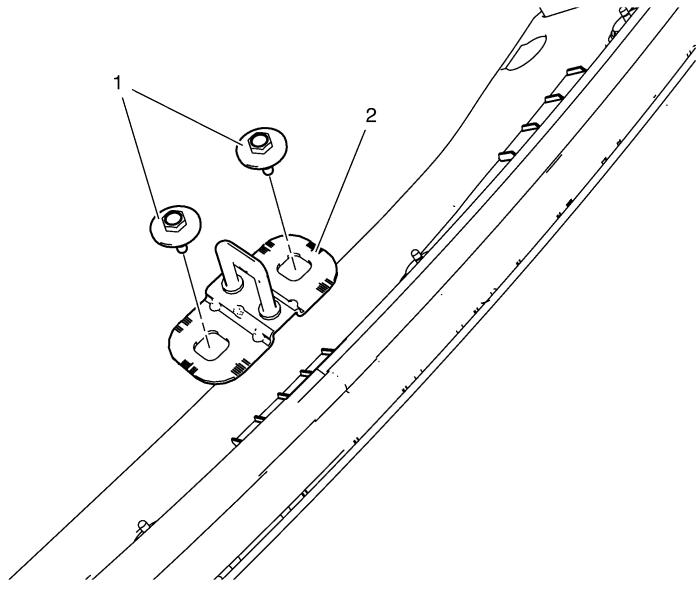

1
|
Liftgate Latch Striker Bolt (Qty: 2)
Caution: Refer to
Fastener Caution .
Procedure
Use a grease pencil to outline the striker before removing the
bolts.
Tighten
22 N·m (16 lb ft)
|
2
|
Liftgate Latch Striker
Procedure
Adjust the liftgate latch striker after replacing, if needed.
|
|
| |
|
