Exhaust System Description - 1.3L Diesel LSF (Engine Exhaust)

Exhaust System Description (1.3L Diesel LSF)

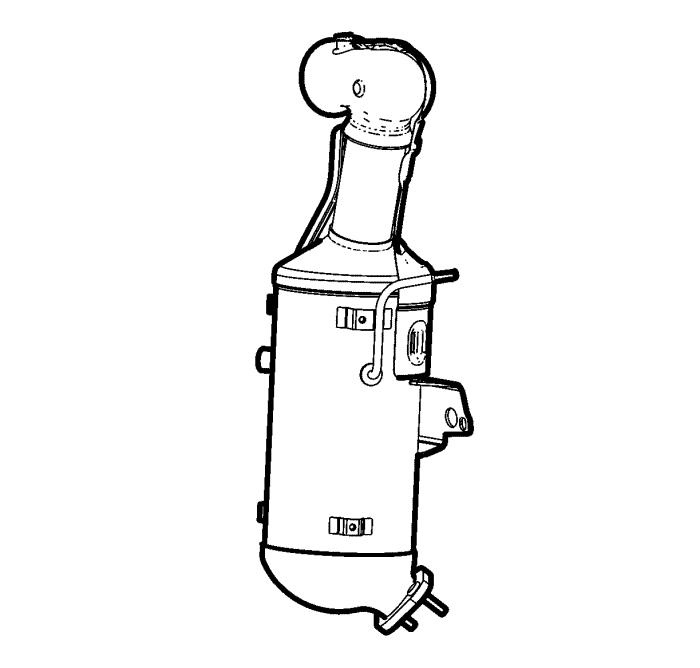

Catalytic Converter

The catalytic converter is an emission control device added to the engine exhaust system in order to reduce hydrocarbons (HC), carbon monoxide (CO), and oxides of nitrogen (NOx) pollutants from the exhaust gas. The catalytic converter is comprised of a ceramic monolith substrate, supported in insulation and housed within a sheet metal shell. The substrate may be washcoated with 3 noble metals, Platinum (Pt), Palladium (Pd) and Rhodium (Rh). The catalyst in the converter is not serviceable.

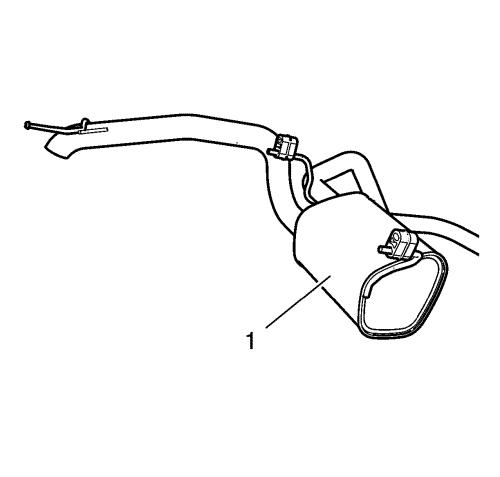

Exhaust Rear Muffler

The rear muffler (1) is to reduce broad band engine exhaust noise. It is comprised of a series of perforated tubes and baffles to break up the sound waves and reflect them.

It is made of stainless steel to protect the front muffler from corrosion.

It is mounted behind the rear wheel.
