02 · General

Arrows and Symbols

General InformationArrows and Symbols

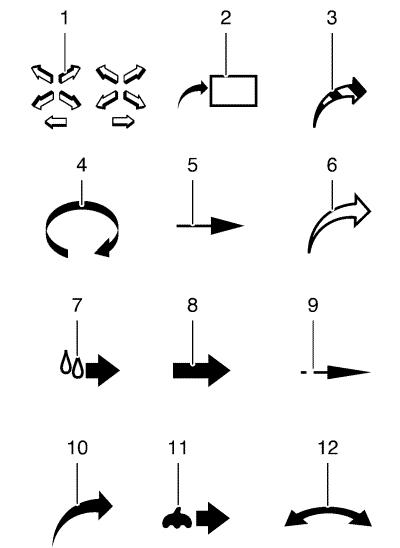

This service manual uses various symbols in order to describe different service operations.

(1)	Front of Vehicle
(2)	View Detail
(3)	Ambient Air Mixed with Another Gas or Can Indicate Temperature Change
(4)	Motion or Direction
(5)	Dimension (1:2)
(6)	Ambient / Clean Air Flow or Cool Air Flow
(7)	Lubrication Point- Oil or Fluid
(8)	Task Related
(9)	Sectioning (1:3)
(10)	Gas Other Than Ambient Air or Hot Air Flow
(11)	Lubrication Point- Grease or Jelly
(12)	Multidirectional
